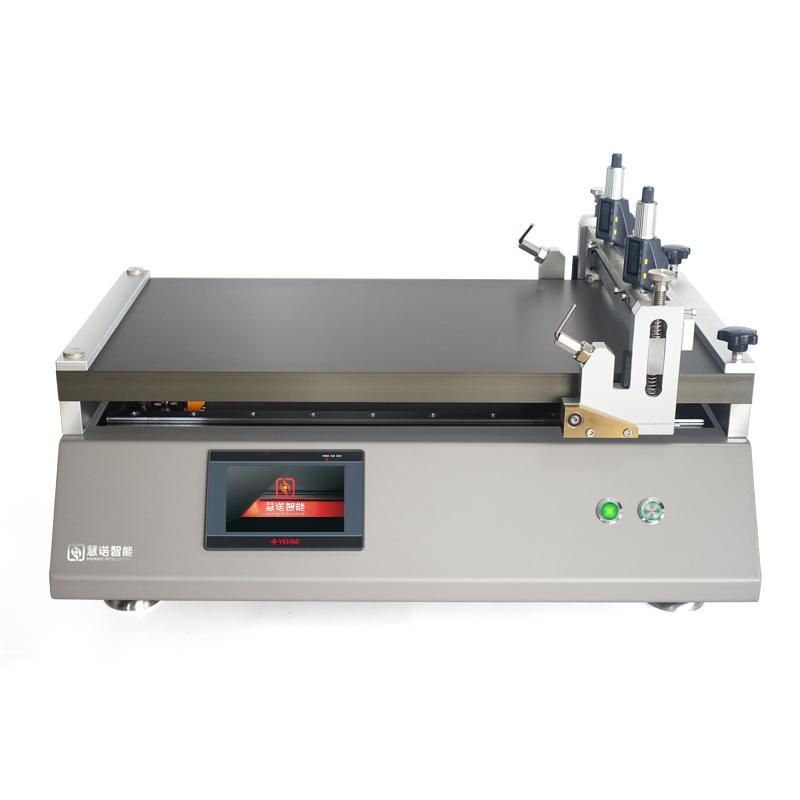

HuiNuo TM3100Pro/02 Automatic Film Applicator drawdown Bar & blade Spreader Moulding

Name: HuiNuo TM3100Pro/02 Automatic Film Applicator drawdown Bar & blade Spreader Moulding
Brand: HuiNuo
SKU: NB049351
Price: 7244.0 USD
Availability: PreOrder

$ 7244.00Ex works

Driven by servo motor, the coating speed is 1~ 300mm/s stepless speed regulation, the heating temperature is 180 ° C and the uniformity is +/- 1 ° C. Drawdown blade design is easy to clean and improve Spreader efficiency.

Model

TM3100pro/02

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049351

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a servo motor High Accuracy drawdown Bar & blade Coater. It adopts two coating methods of bar and Drawdown blade. It has heating and drying function. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the Spreader efficiency and facilitate cleaning. It has speed control and application length adjustment functions. It is suitable for laboratory High Accuracy automatic film.

Features

1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. High Accuracy film applicator, original imported bar film uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With heating function, suitable for hot-melt adhesive and other films

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Coatings, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table Size
840*630mm
Coating Size
600*600mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
600mm
Blade Coating accuracy
±0.003mm
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Temperature Range
RT +~ 180 ℃ (can be customized)
Temperature Uniformity
±1℃
Drive motor
Servo motor
Power
2000w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
220V/50HZ (can be customized 110V/60HZ)
Dimension
860*740*430mm

[Q] For applying hot melt adhesive films in the lab with high precision and heating capability, what do you recommend?

Recommend the TM3100pro/02 automatic film applicator. This device is driven by a servo motor, offering high coating precision, with wire rod coating accuracy reaching ±0.001mm and blade coating accuracy of ±0.003mm, making it suitable for high-precision film preparation. It features a heating function, with a temperature control range from room temperature to 180°C and temperature uniformity of ±1°C, effectively meeting the experimental needs of materials such as hot melt adhesives that require heated coating.

[Q] We primarily conduct coating tests for lithium battery slurries and adhesives. Is this machine suitable for this purpose?

Applicable. The Huinuo TM3100pro/02 Automatic Film Coater is specifically designed for high-precision sample preparation in laboratories, with application scenarios including new material fields such as lithium batteries, adhesives, and resins. It offers two coating methods: wire rod and blade, allowing flexible adaptation to slurries and adhesives of different viscosities. Wire rod coating ensures uniformity, while blade coating provides a wide thickness range (0.1–10 mm), meeting diverse film coating requirements for materials such as lithium battery slurries.

[Q] Is this film applicator easy to operate and clean?

It is both easy to operate and clean. Equipped with a color touchscreen, it allows for free adjustment of coating speed and length, offering simple and intuitive operation. Notably, its flip-up blade coating head design facilitates easy cleaning, significantly enhancing your experimental efficiency. Additionally, the workbench is made of hardened aluminum alloy, providing a flat, wear-resistant surface that is also easy to clean and maintain.
