Overview

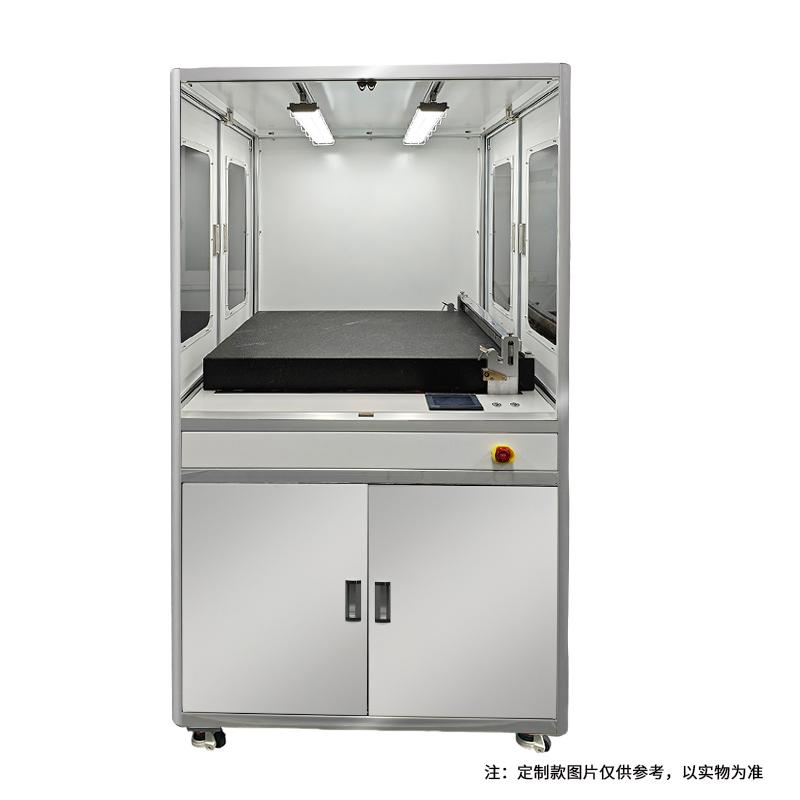

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Moulding proofing, coatings, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate (e.g. Glass, cardboard, fabric) and place it on the Spreader table
2. Vacuum chuck or fixture to secure substrate
3. Set Spreader parameters on Touchscreen (application length, Spreader speed, film thickness, etc.)
4. Select coating method (bar Spreader or Blade Coating)
5. Start the device for automatic filming
6. Remove the sample after the Spreader is completed
7. Spreader head and countertop
Notice
• Before operation, please make sure that the power supply of the equipment is connected correctly, and the voltage range is 100V~ 220V/50~ 60HZ.
• The coating table is hard-treated aluminum alloy to avoid scratching with sharp objects
• The meyer rod coating thickness range is selected according to different rod numbers to ensure accuracy +/- 0.001mm
• Blade Coating thickness range is 0.1~ 10mm, accuracy +/- 0.003mm, clean clamshell Drawdown blade head in time after use
• Heating function Temperature range RT +~ 180 ℃, pay attention to Temperature Uniformity +/- 1 ℃, avoid burns
• Vacuum chuck function to check the working state of the vacuum pump, pumping rate 5.4m ³/h, Ultimate vacuum degree 50KPa
• Device power 1800W, pay attention to heat dissipation and power load during use
• Regularly maintain the servo motor and Spreader mechanism to ensure stable operation
• Customized functions (such as coating speed, effective coating area, Heating mode) need to confirm the specifications in advance
