Overview

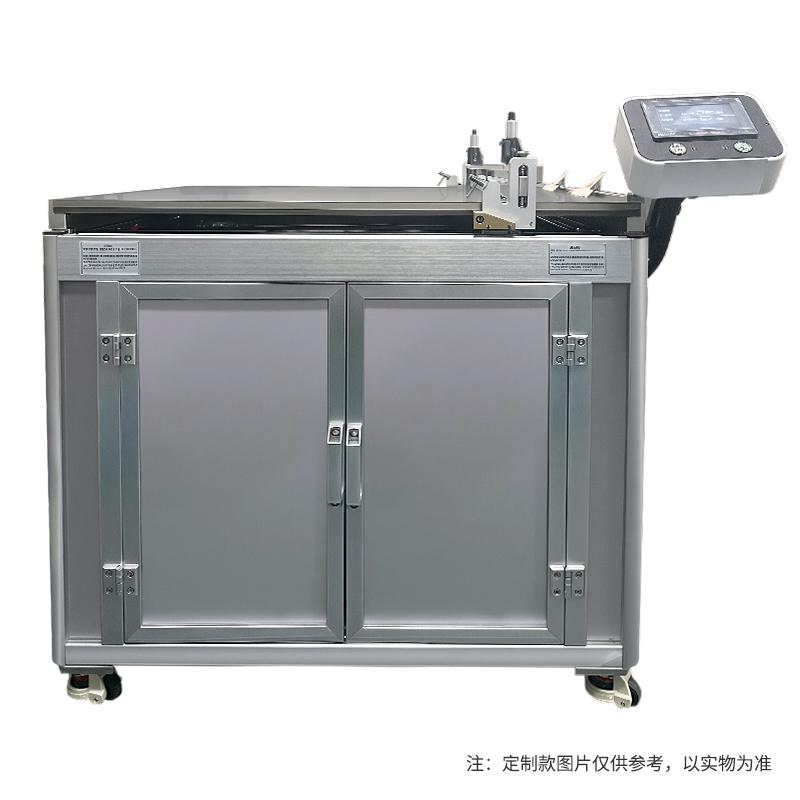

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is drawdown Bar & blade Coater, using bar and Drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell Drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials and other film sample preparation
Steps
1. Prepare samples and substrates
2. Set application length and Spreader speed
3. Select coating method (bar or Drawdown blade)
4. Fixed substrate (using Vacuum chuck or fixture)
5. Start Film Applicator Spreader
6. Clean the Spreader head after finishing the Spreader
Notice
• Power supply voltage matching before use (standard 220V/50HZ, can be customized 110V/60HZ)
• Check whether the substrate is firmly fixed before Spreader
• Clean Spreader head and countertop regularly to maintain accuracy
• Avoid touching the running Spreader header when operating
• Select the appropriate Spreader thickness and speed according to material characteristics
