Overview

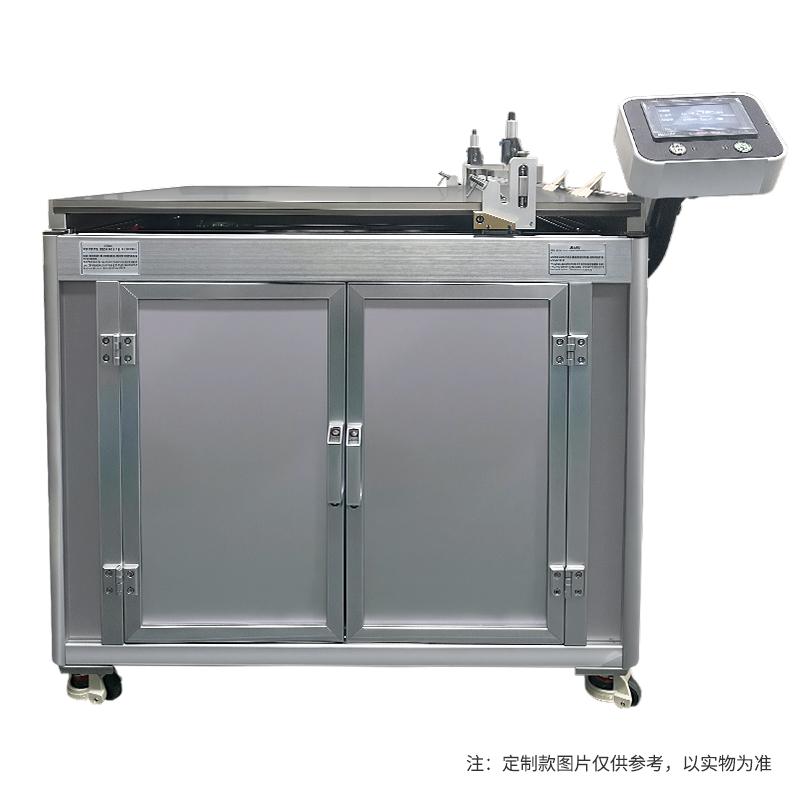

Automatic Film Applicator is a device for intermediate coating films in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a drawdown Bar & blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Moulding proofing, coatings, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed)
3. Select coating method (bar or Drawdown blade)
4. Start the device for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Please read the instructions carefully before operation
• Ensure that the power supply of the equipment meets the requirements (100V~ 220V/50~ 60HZ)
• Check whether the substrate is firmly fixed before Spreader
• Clean Spreader Head in time after use
• Regularly check the operating status of the equipment
