Overview

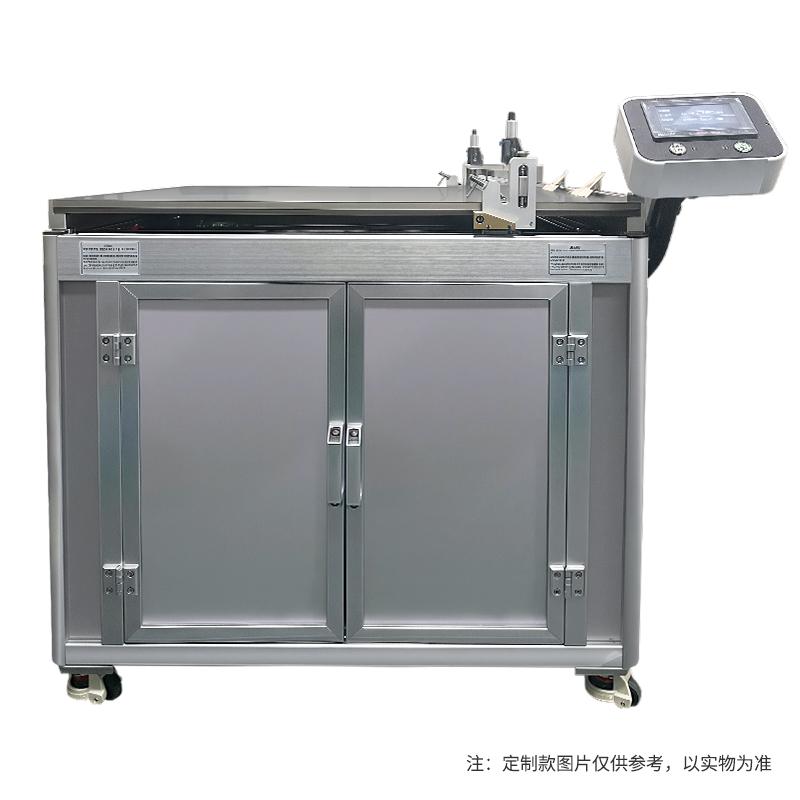

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a drawdown Bar & blade Coater, with bar Spreader and Blade Coating two functions, innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automated film is realized by using bar Spreader and Blade Coating, driven by servo motor, combined with Vacuum chuck and heating functions.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare samples and substrates
2. Set Spreader parameters (application length, Spreader speed, etc.) through Touchscreen
3. Select coating method (bar or Drawdown blade)
4. Start Vacuum chuck fixed substrate
5. If heating is required, set the heating temperature
6. Start automatic filming
7. Cleaning after the film is completed
Notice
• Make sure the power supply of the device is connected correctly before operation
• Spreader parameter settings need to be adjusted according to sample characteristics
• Pay attention to safety when cleaning the Spreader head to avoid scratches
• Vacuum chuck function ensures the substrate is flat when used
• Pay attention to temperature control when using the heating function to avoid burns
• Regularly check the running status of the equipment and keep it clean
