Overview

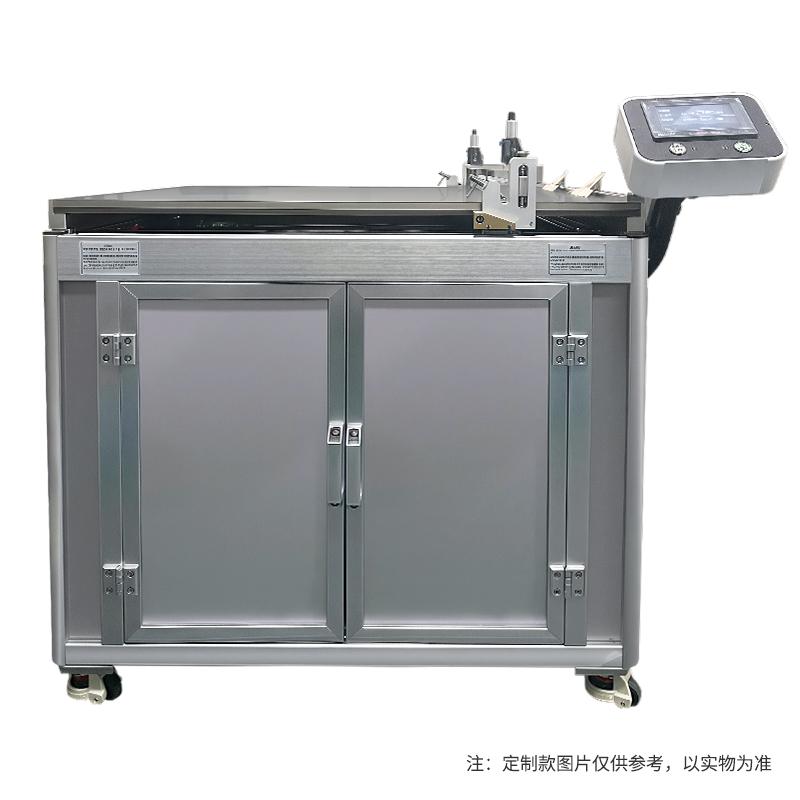

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Automatic Film Applicator is a bar drawdown blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar mounting method and clamshell drawdown blade head greatly improve the efficiency of Spreader and are easy to clean. It has speed control and Spreader length adjustment functions. It is suitable for laboratory High Accuracy automatic film.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (Spreader length, Spreader speed, etc.)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar or drawdown blade)
5. Start Automatic Film Applicator for Spreader
6. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the power supply of the device is connected correctly before operation
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Clean the Spreader head in time after the Spreader is completed to prevent sample residue
• Maintain equipment regularly to ensure film accuracy
