Overview

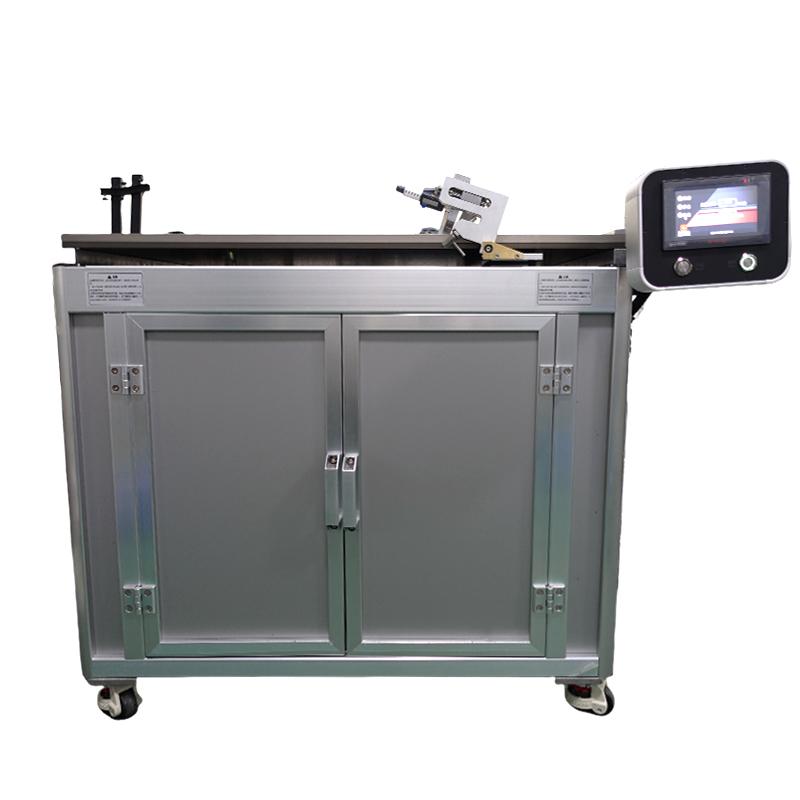

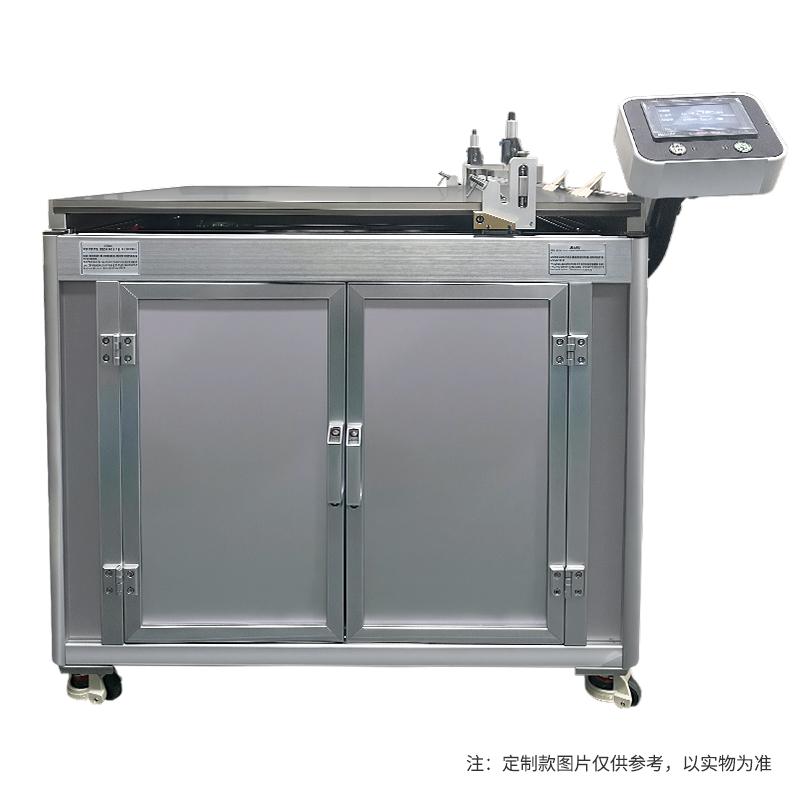

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments.
2. Big brand differential regulator, high film thickness control accuracy.

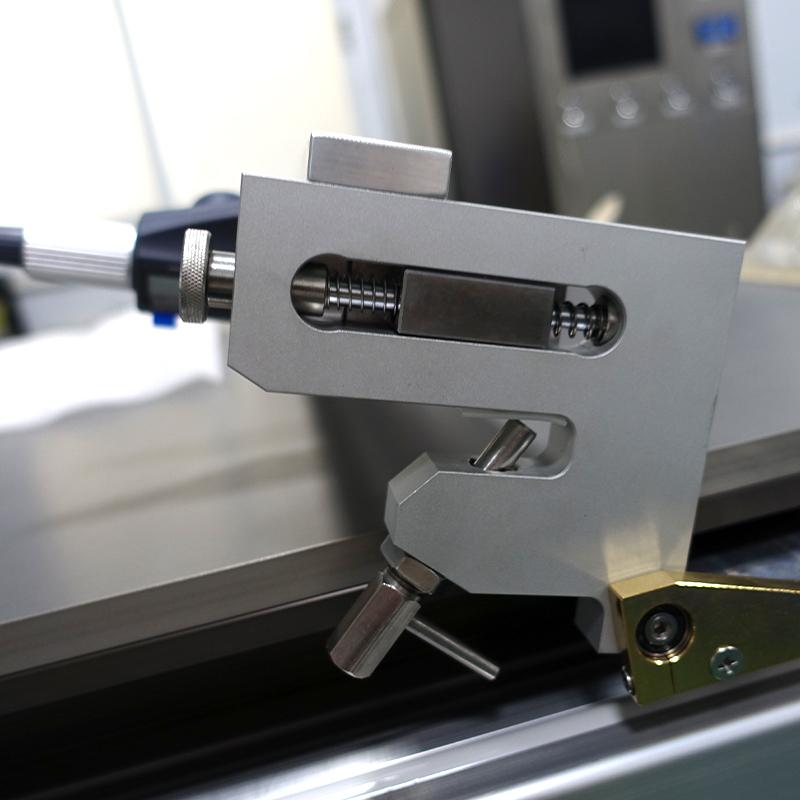

3. Flip Type Blade Coating Head, Easy to Clean.
4. High Accuracy film applicator with high accuracy of original imported bar film.
5. Touchscreen control panel, easy to operate.
6. Spreader length and Spreader speed can be adjusted freely.
7. With heating and Vacuum chuck function.
8. Using servo motor, the operation is more stable and the film accuracy is higher.
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. It adopts two coating methods of bar and drawdown blade, combined with servo motor drive, to achieve High Accuracy film.
Applications
Paint, inks, paints, Stock, Lithium Battery, Pressure sensitive adhesive, Resin, Glue, Polymer Materials, Pharmaceuticals and other film sample preparation, can be scraped on Glass, cardboard, fabric.
Steps
1. Prepare the substrate and sample.
2. Set Spreader parameters, such as Spreader length and speed, through Touchscreen.
3. Select the coating method (bar or drawdown blade).
4. Start the device and automatically film.
5. After the film is completed, clean the Spreader head.
Notice
Before use, ensure that the power supply of the equipment meets the requirements (100V~ 220V/50~ 60HZ).
- Pay attention to the setting of the Spreader parameter when operating to avoid using it beyond the scope.
- Clean the Spreader head regularly and keep the equipment hygienic.
When using the heating function, pay attention to temperature control to prevent burns.
- Vacuum chuck function needs to check the working status of Vacuumpump.
The equipment is heavier (40kg), so be careful when handling it.
