Coating speed 1~ 300mm/s stepless speed regulation, bar accuracy +/- 0.001mm, Blade Coating Film thickness 0.1~ 10mm, equipped with automatic feeding and heating system, support Vacuum chuck optional function.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB049711
Service :The delivery and service By NBCLab.Com

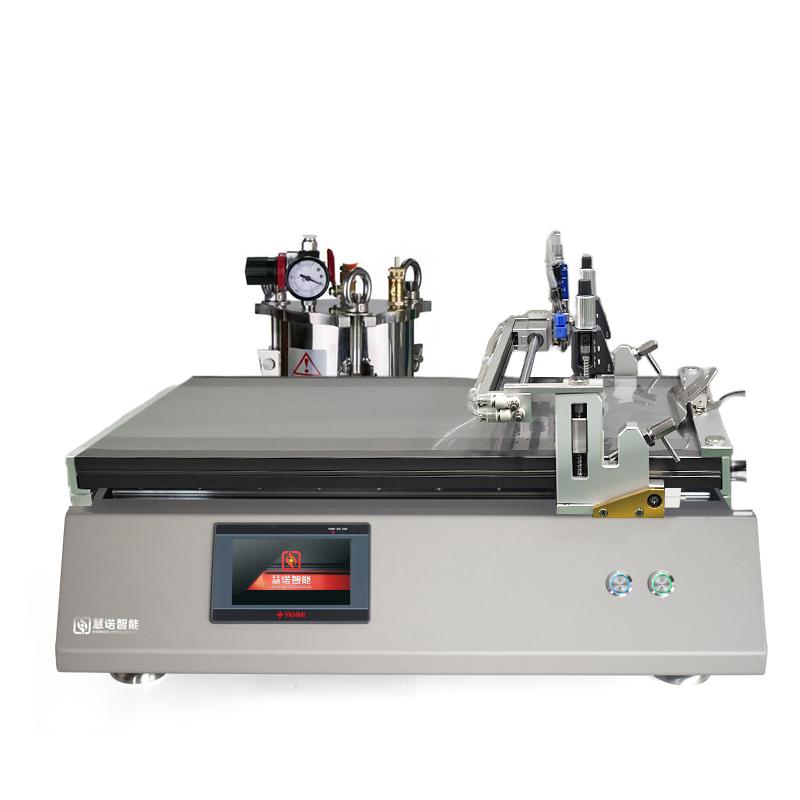

The HuiNuo TM3100Pro/03AF Automatic Film Applicator is a multifunctional Spreader device that supports both bar and drawdown blade coating methods. The coating speed can be stepless from 1 to 300mm/s. The device is equipped with an automatic feeding system, optional heating function (temperature range RT +~ 180 ° C) and Vacuum chuck option for laboratory and industrial Spreader applications.
1. Flexible coating method: support bar and Blade Coating, bar accuracy +/- 0.001mm, Blade Coating accuracy +/- 0.003mm. 2. Automatic feeding system: Adopt the principle of air source pressure outflow, the amount of material can be adjusted, and the Mixing Tank volume is 1L, and the material is 304 stainless steel. 3. High Accuracy Control: Coating speed stepless speed regulation, Heating Temperature Uniformity +/- 1 ℃, optional graphene heating to improve thermal conductivity. 4. User-friendly design: Color LCD Touchscreen, supports Chinese operation, and can customize the English interface. 5. Safe and reliable: Mixing Tank is equipped with safety valve, pressure regulating valve, pressure gauge and discharge valve, with a maximum pressure of 8Mpa.
Automatic Film Applicator performs Spreader on the surface of the substrate through a bar or drawdown blade. The bar Spreader Film thickness is determined by the bar number. The Blade Coating Film thickness range is 0.1~ 10mm. The automatic feeding system uses air source pressure to push the material and achieves uniform feeding through reciprocating linear motion. The Spreader process is controlled by a synchronous belt drive to ensure accuracy and stability.
Laboratory Spreaders, Industrial Spreaders, Material Testing, Coatings prepatives
1. Prepare the substrate and fix it on the fixture. 2. Select the bar or Blade Coating method according to your needs. 3. Set the coating speed and feeding parameters (such as air pressure and speed). 4. Start the automatic feeding system and perform Spreader operation. 5. When the heating function is optional, set the temperature and monitor the uniformity. 6. Clean the equipment after completion, paying special attention to the clamshell design of the drawdown blade for easy cleaning.
• Make sure the air source pressure is 0.6Mpa before use, and connect the 8-Mpa trachea. • The maximum pressure of Mixing Tank should not exceed 8MPa to avoid overpressure operation. • When using the heating function, pay attention to the Temperature Uniformity control within +/- 1 ℃. • Use its clamshell design when cleaning drawdown blades to prevent residues from affecting accuracy. • The power supply of the equipment is 100V~ 220V/50~ 60HZ to ensure that the local voltage is matched.
We recommend the Hui Nuo TM3100pro/03AF automatic film applicator. This device supports both wire bar and blade coating methods, with a wire bar accuracy of ±0.001 mm and a blade coating accuracy of ±0.003 mm, making it suitable for applications such as lithium battery slurry that require high precision and uniform coating. It also comes standard with an automatic feeding system. The feeding barrel is made of 304 stainless steel, offering corrosion resistance, and it can be heated and controlled up to 180°C, effectively maintaining the stability of the slurry viscosity and ensuring coating quality.
For samples with different thickness requirements such as optical films and conductive films, the TM3100pro/03AF is suitable. It features both wire rod and blade coating functions: the wire rod is suitable for micron-level thin coatings, allowing precise thickness control by changing rod numbers; the blade coating range is 0.1–10 mm, making it suitable for thicker coatings. The flip-top blade design also facilitates cleaning, preventing cross-contamination of samples. Additionally, optional heating and vacuum adsorption functions enable better handling of various sensitive substrates.
Yes. This film applicator can be optionally equipped with a mica sheet heating or graphene heating module, with a temperature control range from room temperature to 180°C and uniformity of ±1°C, effectively maintaining the fluidity of adhesives. Its automatic feeding system uses pneumatic control, with adjustable dispensing volume, and ensures uniform material distribution through reciprocating linear motion, avoiding the instability of manual feeding. The feeding barrel is equipped with a pressure gauge and pressure regulating valve for safe operation, ensuring continuous and consistent material supply during the coating process.
