Overview

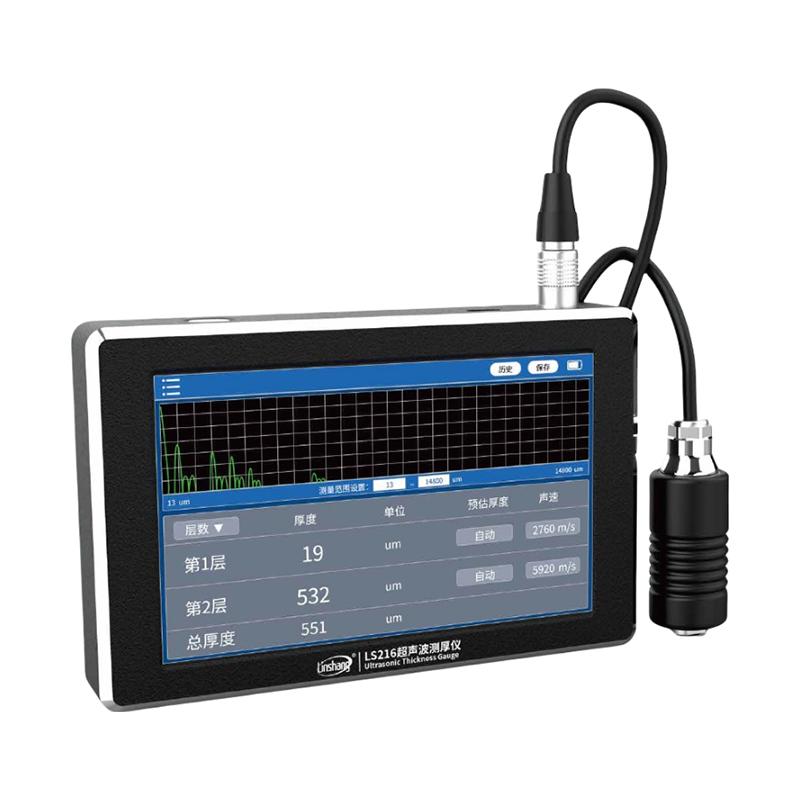

LS216 is a Handheld Ultrasonic Coating thickness gauge, using pulse reflection ultrasonic measurement principle, professional for Pottery and porcelain, plastic, Glass and other non-metallic substrates that can conduct ultrasonic wave surface coating Film thickness and the film thickness of the substrate itself, can also be Measurement of film thickness of metal substrate surface coating and metal substrate itself Film thickness.
Features

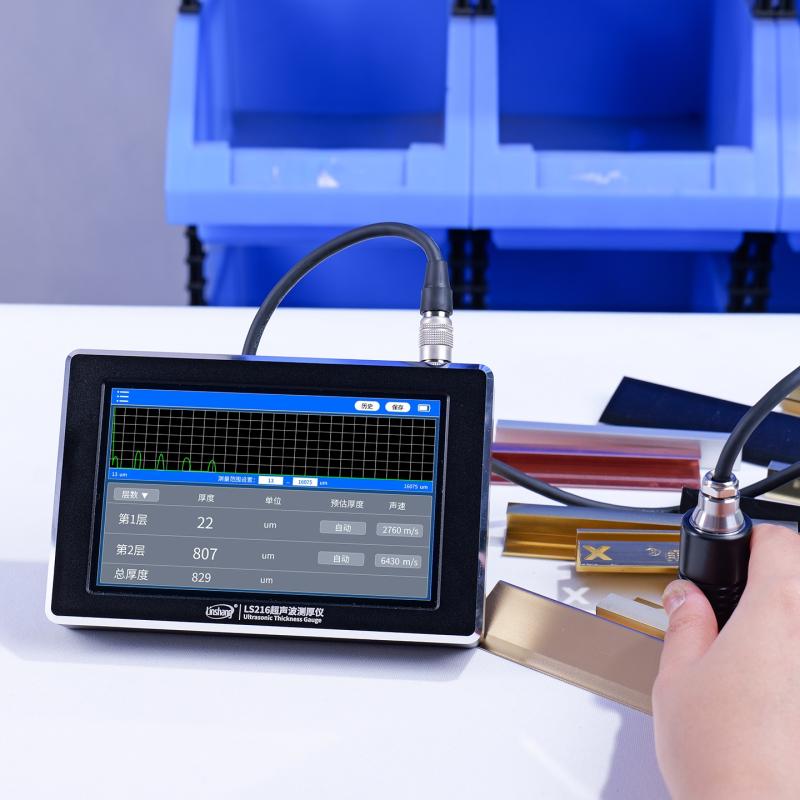

1. Simultaneous measurement of multi-layer coatings or coatings + substrate Film thickness to meet complex testing needs
2. Instrument uses high-speed ADC data collection with resolution up to 1μm
3 high definition IPS color large screen design, easy to operate
4. With automatic gain switching function, the appropriate gain can be automatically selected according to the material type and Film thickness
5. Large measurement range: 13~ 1000μm (epoxy resin coating), 300~ 14800μm (45 #steel)
6 measurement waveform display, movable waveform display area of the green cursor, view the rest of the waveform data
7. With range setting function, can effectively filtrate interference echo
8. Film thickness setting function to improve the accuracy of multiple coating measurements
9. Three sound speed settings, flexible to adapt to various scenarios
10. Ambient Temperature Compensation, Numerical Stability, Allows Long Period Calibrating
Principle
The probe emits high-frequency ultrasonic pulses, which enter the coating through the coupling agent. When encountering the coating interface of different densities, part of the ultrasonic wave will be reflected as a new ultrasonic pulse, and the other part will pass through. The new ultrasonic pulse returns to the Probe and is received by the Sensor. After instrument processing, the propagation time of ultrasonic waves in the coating is obtained, and the coating thickness is calculated.
Applications

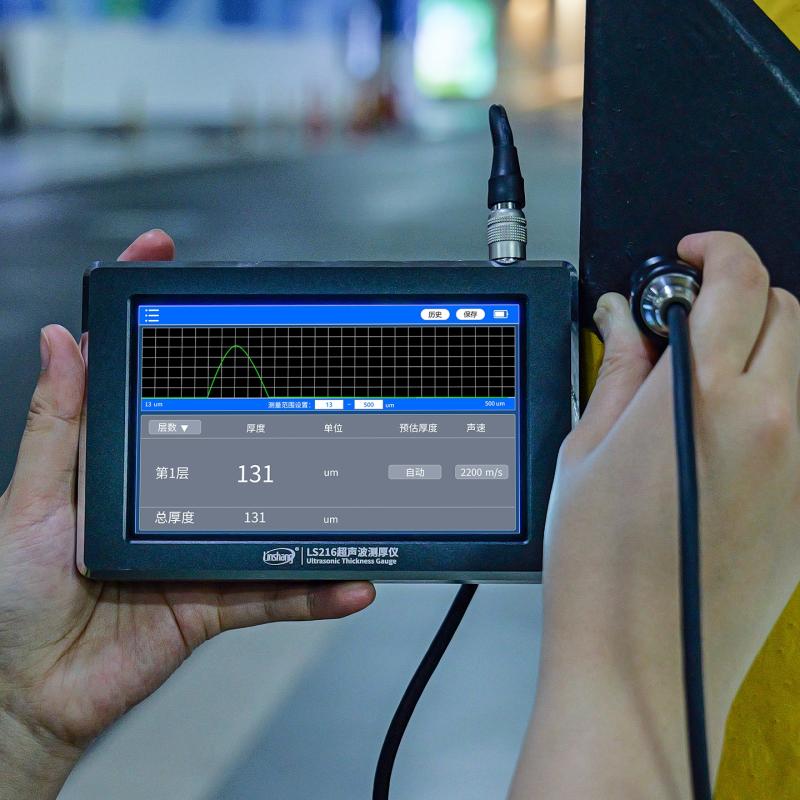

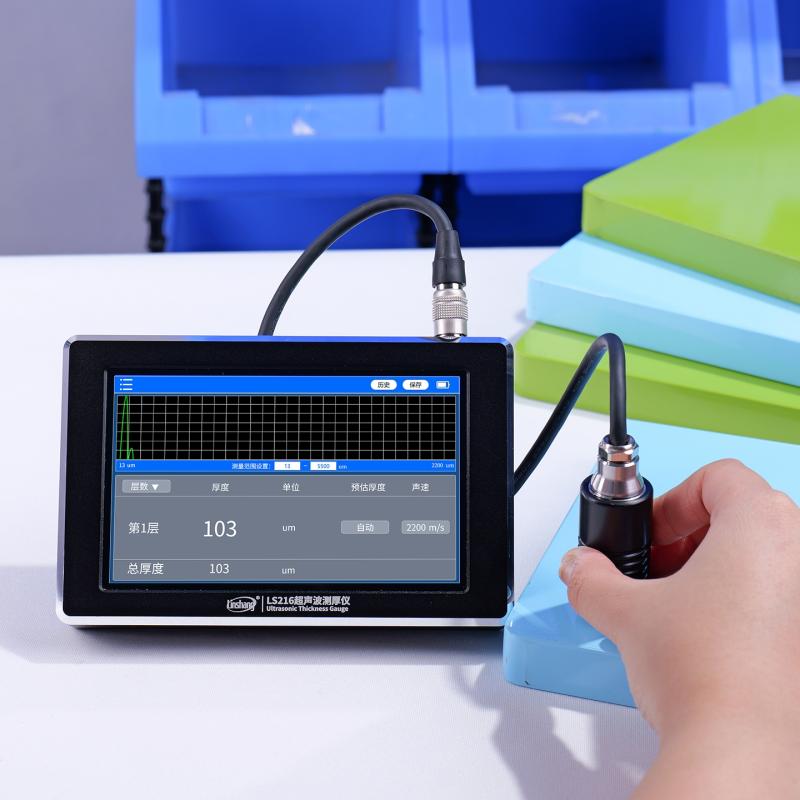

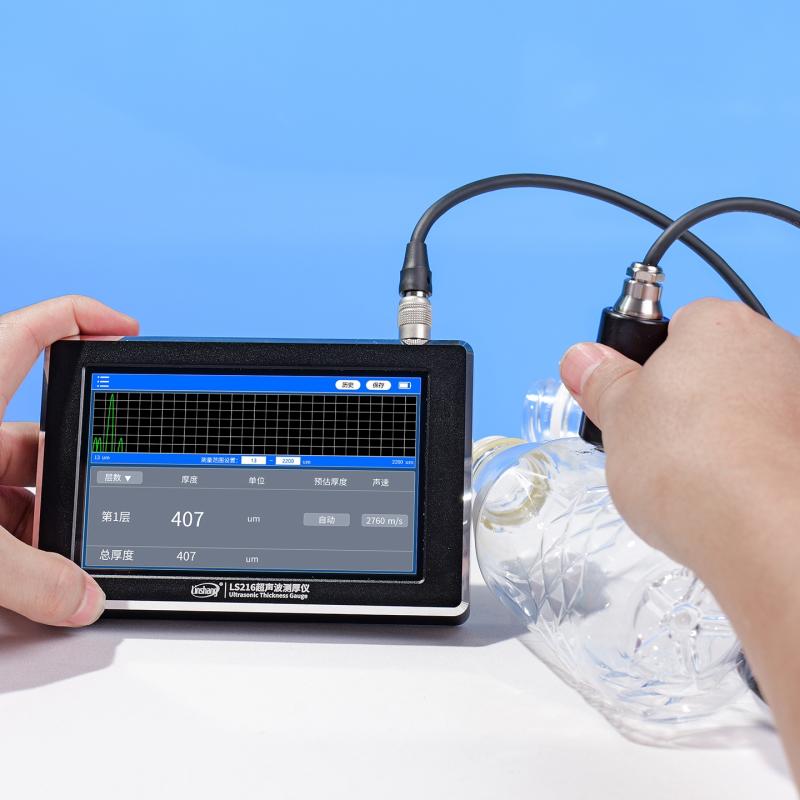

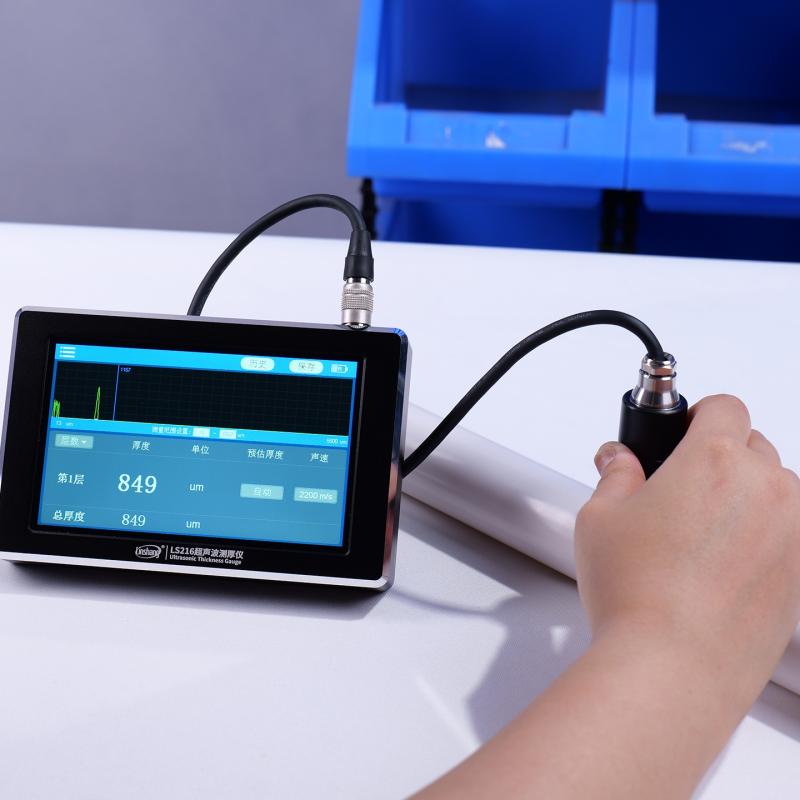

Pottery and porcelain, plastic, Glass and other Non-metallic substrate surface coating thickness measurement, metal substrate surface coating thickness measurement
