Overview

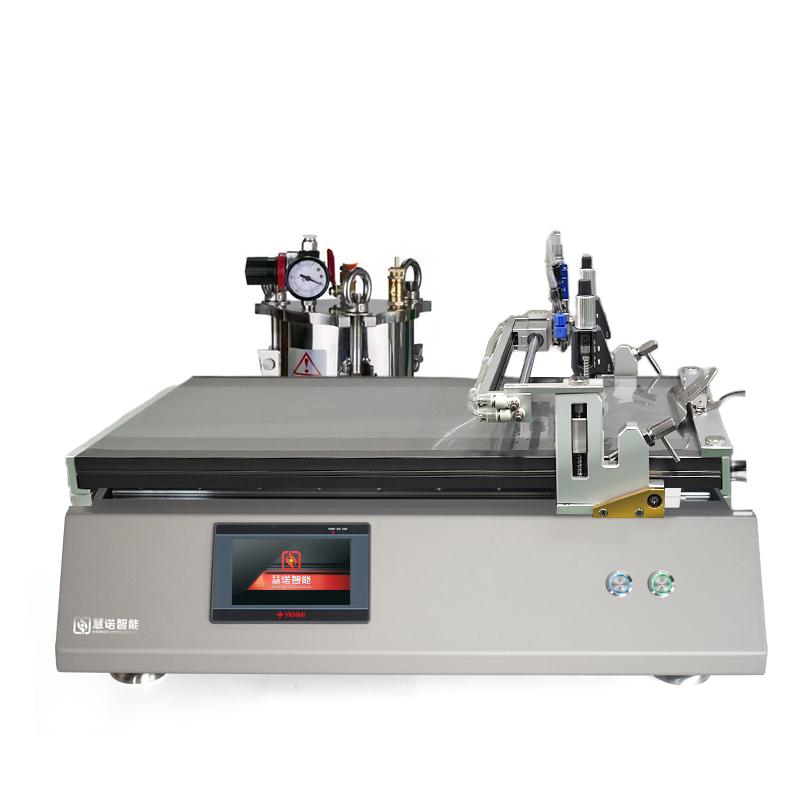

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy film is achieved by using bar Spreader and Blade Coating, driven by servo motor, combined with Vacuum chuck to fix the substrate.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (Spreader length, Spreader speed, etc.) through Touchscreen
3. Secure the substrate to the Spreader stage (using Vacuum chuck or fixture)
4. Select the coating method (bar or drawdown blade) and install the corresponding Spreader head
5. Start the device for automatic filming
6. Remove the sample after the film is completed
7. Spreader head and countertop
Notice
• Make sure the power supply of the device is connected correctly before use
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and parameters according to the properties of the sample
• Regularly clean the Spreader head and countertop to keep the equipment hygienic
• Avoid touching the heated part during operation to prevent burns
• The charging system requires the customer to bring their own compressed air (0.6Mpa)
• Customized functions need to be confirmed in advance
