Overview

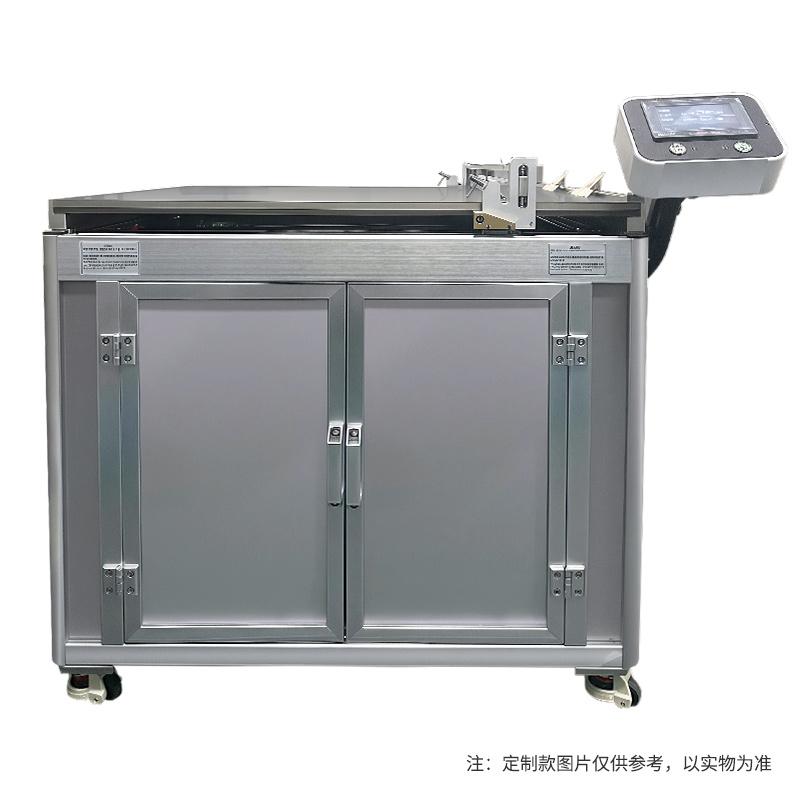

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (Spreader length, Spreader speed, film thickness, etc.)
3. Fix the substrate to the coating table
4. Start Automatic Film Applicator for Automatic Spreader
5. Remove the sample after completing the Spreader
Notice
• Make sure the power supply of the device is connected correctly before operation
• Spreader parameter settings need to be adjusted according to sample characteristics
• Clean Spreader head and countertop regularly to maintain accuracy
• Ensure the substrate is flat when using the Vacuum chuck function
• Pay attention to temperature control when using the heating function
• Disconnect power during maintenance to ensure safety
