Overview

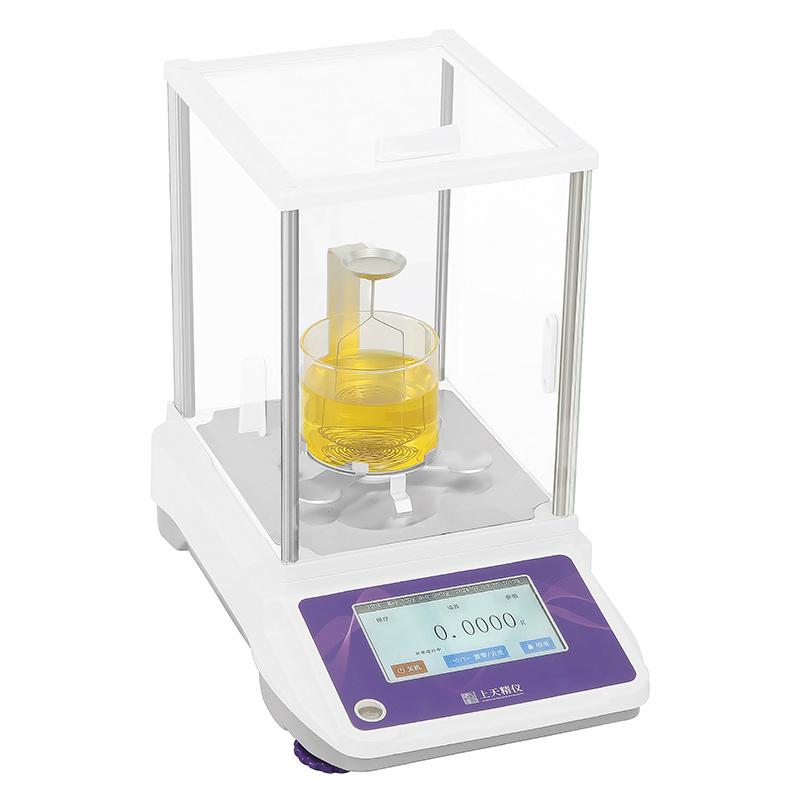

The AE124J Density Electronic Balance is a High Accuracy weighing device that uses a new generation of Electromagnetic Force Sensor to provide stable and reliable weighing results. It is equipped with a 5-inch color TFT touch display, supports laboratory glove operation, and comes standard with a Density weighing kit for rapid measurement of solid and liquid Density with a reaction time of less than 3 seconds.
Features
1. Adopt a New Generation of High Accuracy and High Resolution Electromagnetic Force Sensor to Ensure Stable and Reliable Weighing
2.5-Inch color TFT touch display, supports operation with laboratory gloves
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3 seconds
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer data directly to Excel and other applications
8. Optional lower hook design to meet special application needs
9. Wide power supply range: 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance is based on Electromagnetic Force Sensor technology, which detects sample weight through High Accuracy Sensor, combined with Density Weighing Kit to measure solid or liquid Density. Weighing data can be transmitted through RS232 interface, and optional functions can be directly imported into applications such as Excel.
Applications
Density measurement, liquid Density measurement
Standards
External calibrating function
Steps
1. Adjust the equipment level through the front horizontal bubble
2. Install Standard Density Weighing Kit
3. Use Touchscreen to select the weighing unit
4. Place the sample for weighing
5. Read Density Direct Reading Results
6. Optional data transmission through RS232 interface
Notice
• operation temperature range of 10 ° C-30 ° C
• Make sure the level of the equipment is adjusted correctly before use
• Capacity not exceeding 120g
• Power frequency adaptation range 110V-240V
Keep the pan clean to ensure measurement accuracy
