Overview

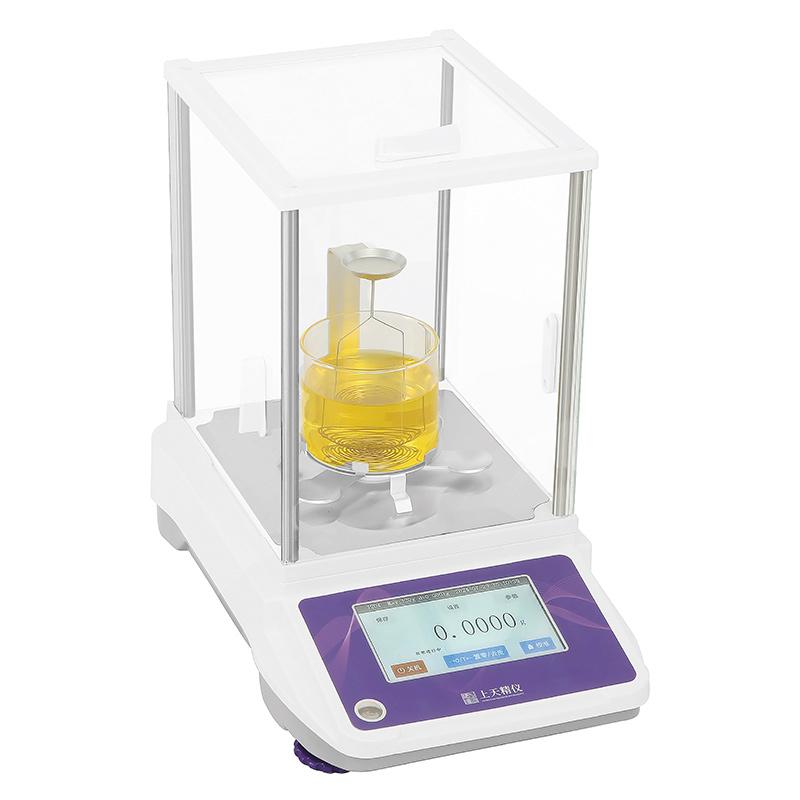

The AE224J Density Electronic Balance is a High Accuracy weighing device that uses a new generation of Electromagnetic Force Sensor to provide stable and reliable weighing results. It is equipped with a 5-inch color TFT touch display, supports laboratory glove operation, and comes standard with a Density weighing kit that quickly reads Density values for solid and liquid Density testing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation with laboratory gloves
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional lower hook design to meet users' special application needs
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The AE224J Density Electronic Balance is based on Electromagnetic Force Sensor technology, which detects sample weight through High Accuracy Sensor and quickly calculates Density value in combination with Density Weighing Kit. Its front level bubble ensures that the device is placed horizontally, reducing errors and achieving stable measurement.
Applications
Laboratory, industrial testing, scientific research and education, mass monitoring
Steps
1. Place the device smoothly and adjust the level through the front horizontal bubble
2. Connect the power supply and turn it on.
3. Install Standard Density Weighing Kit
4. Place the sample for weighing, and the display screen directly reads the Density value
5. Optional connection to RS232 interface to transfer data to Excel and other applications
Notice
• Make sure the equipment is placed horizontally before use and adjusted through horizontal bubbles
• Operating Ambient Temperature should be kept within 10 ° C-30 ° C range
• Avoid use in strong electromagnetic interference environments
Periodically calibrated to ensure accuracy
• Avoid liquids from entering the equipment when cleaning
