Overview

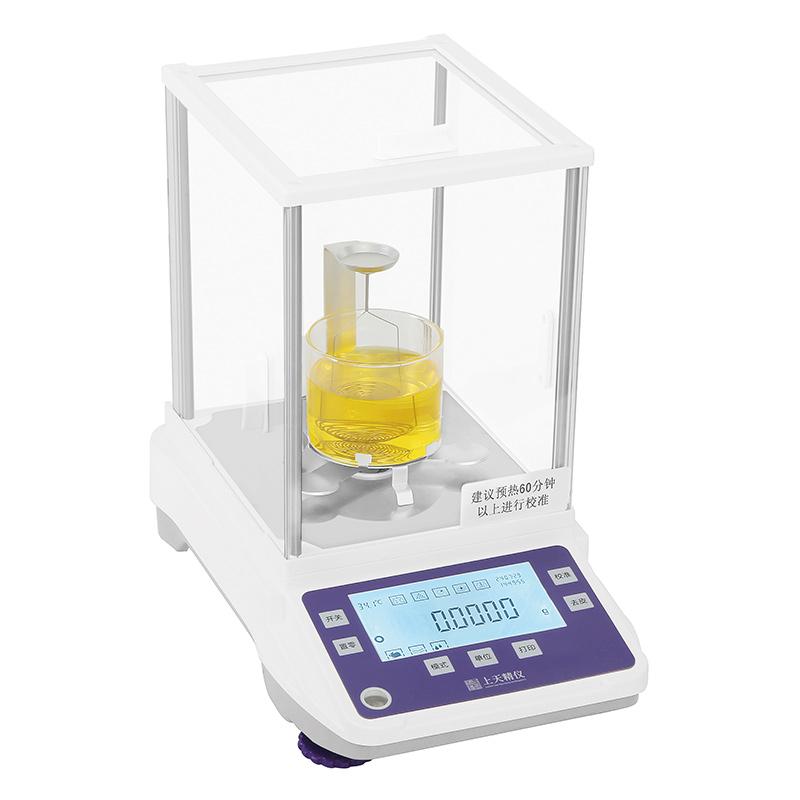

FA1204J Density Electronic Balance is a High Accuracy weighing device launched by Shangtian Jingyi brand. It adopts a new generation of electromagnetic force Sensor technology and has a direct reading function of Density, and the response time is less than 3 seconds. The product is equipped with an oversized backlit high definition LCD display and front horizontal bubble adjustment, which is intuitive and easy to operate. It is suitable for solid and liquid Density testing.
Features
1. Adopt New Generation High Accuracy, High Resolution Electromagnetic Force Sensor to Provide Stable and Reliable Weighing Results
2. Equipped with large backlit high definition LCD LCD display, the weighing results are clearly displayed
3. Front horizontal bubble adjustment design, simple and intuitive operation
4. Density direct reading function, response time is less than 3 seconds
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Support a variety of weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to Excel and other applications
8. Optional lower hook design to meet special application needs
Principle
FA1204J Density Electronic Balance works based on Electromagnetic Force Sensor technology, detects sample weight through High Accuracy Sensor, and implements Density direct reading function in combination with Density test suite. Fast Response during weighing ensures accurate and stable measurement results.
Applications
Solid Density Test, Liquid Density Test
Standards
External calibrating function
Steps
1. Install Standard Density Weighing Kit
2. Adjust the equipment level through the front horizontal bubble
3. Place the test sample for weighing
4. Read Density or weight results on LCD display
5. Optional to transfer data to Excel and other applications through RS232 interface
Notice
• Make sure the level adjustment of the equipment is accurate before use
• The operation temperature range should be kept between 10 ° C and 30 ° C
• Avoid overloading, Capacity is 120g
Periodically calibrated to ensure accuracy
• Note that the power requirements are 110V-240V, 50Hz/60Hz
