Overview

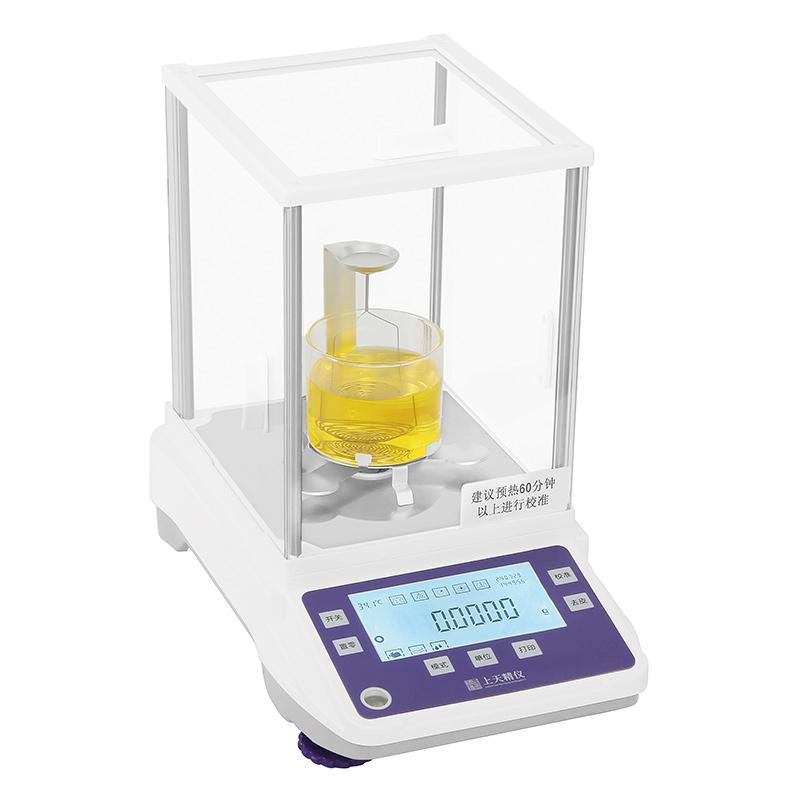

The FA2204J Density Electronic Balance is a High Accuracy weighing device from Shangtian Jingyi brand, dedicated to solid and liquid Density testing. It uses a new generation of electromagnetic force Sensor to provide stable and reliable weighing results, and comes standard with a Density weighing kit for easy installation and operation.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional lower hook design to meet users' special application needs
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance is based on Electromagnetic Force Sensor technology, which detects sample weight through High Accuracy Sensor, and combines Density Weighing Kit to quickly calculate solid or liquid Density for direct Density reading.
Applications
Solid Density Test, Liquid Density Test
Standards
External calibrating function
Steps
1. Install Density Weighing Kit
2. Adjust the equipment level through the front horizontal bubble
3. Place the sample for weighing
4. Read Density Results on LCD Display
5. Optional use of RS232 interface to transfer data to PC applications
Notice
• Make sure the level of the equipment is adjusted correctly before use
• Operating Ambient Temperature should be within the range of 10 ° C-30 ° C
• Avoid overloading, Capacity 220g
Periodically calibrated to ensure accuracy
• Power frequency range is 110V-240V
