Overview

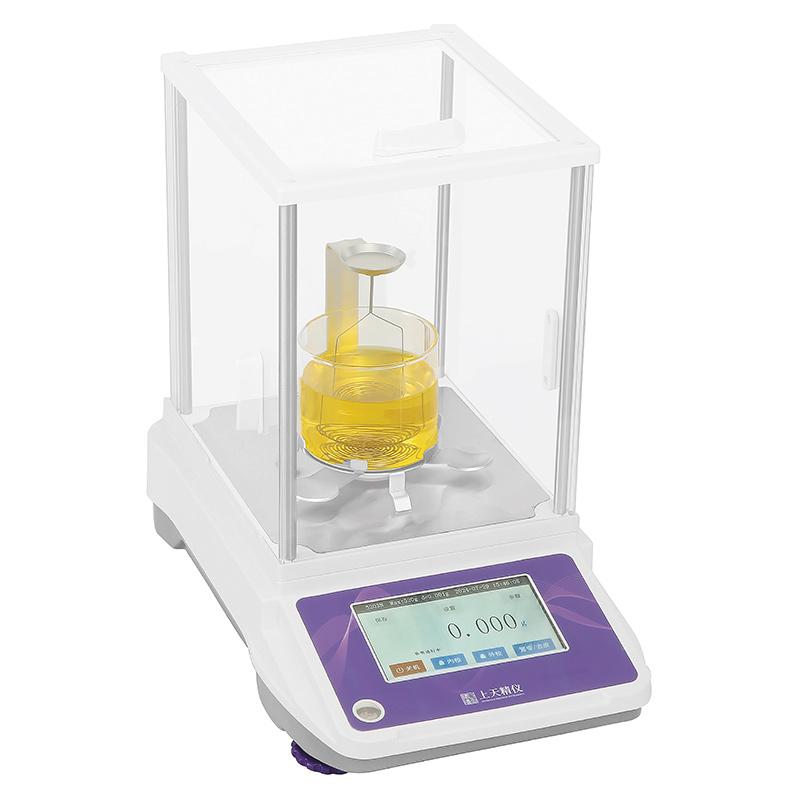

The AE223J Density Electronic Balance is a High Accuracy weighing device that uses a new generation of Electromagnetic Force Sensor to provide stable and reliable weighing results. The product is equipped with a 5-inch color TFT touch display, supports operation with laboratory gloves, and comes standard with a Density weighing kit for rapid measurement of solid and liquid Density with a reaction time of less than 3 seconds.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional lower hook design to meet users' special application needs
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The AE223J Density Electronic Balance uses Electromagnetic Force Sensor technology to detect sample weight through High Accuracy Sensor and calculate solid or liquid Density in combination with Density Weighing Kit. The device is operated and data displayed through Touchscreen, supporting fast Response and direct reading of Density results.
Applications
Solid Density Test, Liquid Density Test
Standards
External calibrating function
Steps
1. Connect the power supply and turn it on.
2. Adjust the equipment level through the front horizontal bubble
3. Install Density Weighing Kit
4. Place the sample for weighing
5. Read Density Results
6. Optional to transfer data to Excel and other applications through RS232 interface
Notice
• Make sure the level adjustment of the equipment is accurate before use
• Operating Ambient Temperature should be within the range of 10 ° C-30 ° C
• Note that the sample weight must not exceed Capacity 220g
Periodic external calibration to ensure measurement accuracy
• Pay attention to the net weight of the equipment 6.0kg and the gross weight 9.0kg when transporting
