Overview

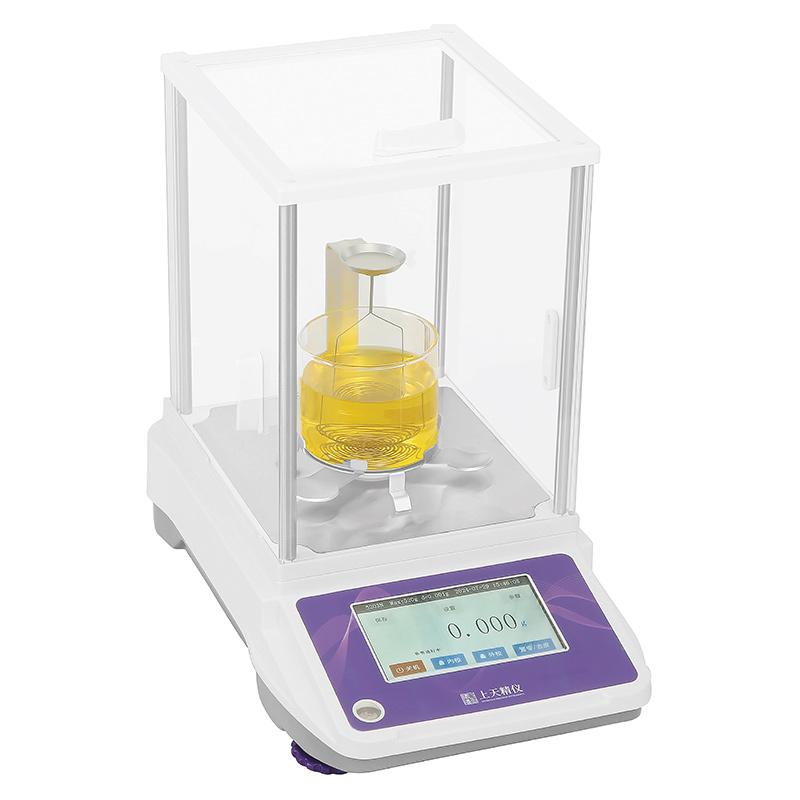

The AE523J Density Electronic Balance is a High Accuracy weighing device that uses a new generation of Electromagnetic Force Sensor to provide stable and reliable weighing results. It is equipped with a 5-inch color TFT touch display, supports operation with laboratory gloves, and comes standard with a Density weighing kit for fast measurement of solid and liquid Density.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2.5-Inch color TFT touch display, supports operation and use with laboratory gloves
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional lower hook design to meet users' special application needs
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance is based on Electromagnetic Force Sensor technology, which directly calculates and displays Density values by measuring the weight of the sample in air and the buoyancy in the liquid, combined with built-in algorithms. Its high-resolution Sensor ensures weighing accuracy with a reaction time of less than 3 seconds.
Applications
Density measurement, liquid Density measurement
Standards
External calibrating function
Steps
1. Adjust the Balance Level by Front Horizontal Bubble
2. Install Standard Density Weighing Kit
3. Use Touchscreen to set the weighing unit
4. Place the sample for weighing
5. Read Density Direct Reading Results
6. Optional to transfer data to Excel through RS232 interface
Notice
• Operating Ambient Temperature should be kept within 10 ° C-30 ° C range
• Balance level adjustment before use
• Note that the peeling range is full scale
• Pay attention to the weight limit of net weight 6.0kg and gross weight 9.0kg when transporting
• Optional functions require additional configuration
