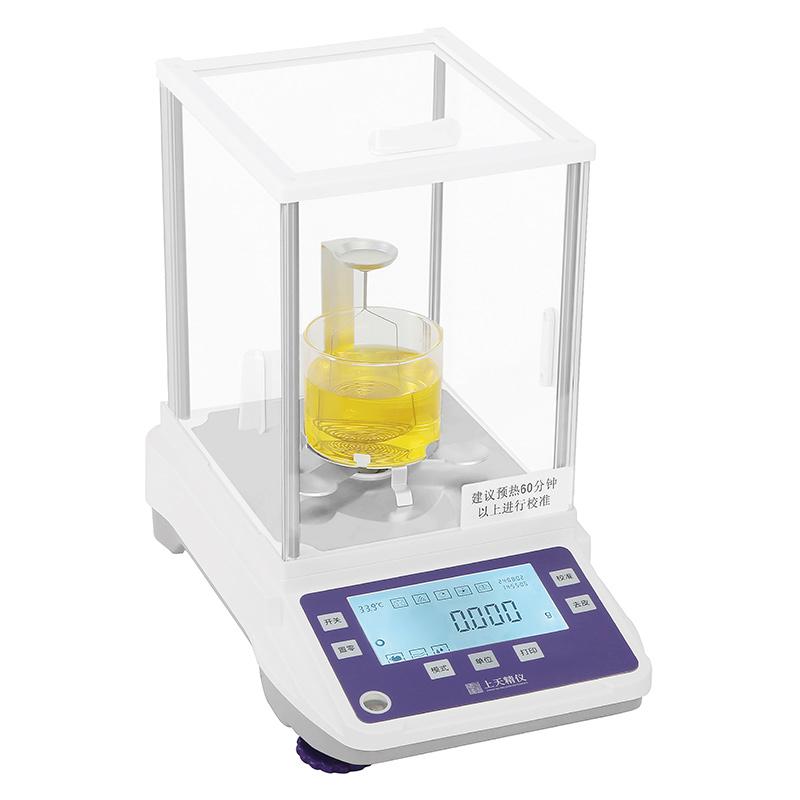

Shangtian Jingyi JA223J Density Electronic Balance Density Direct Reading RS232 Interface

Name: Shangtian Jingyi JA223J Density Electronic Balance Density Direct Reading RS232 Interface
Brand: ShangTianJingYi
SKU: NB049954
Price: 742.0 USD
Availability: InStock

$ 742.00Ex works

High Accuracy Electromagnetic Force Sensor, Density Direct Reading Response Time Less Than 3 Seconds, Capacity 220g, readability 0.001g, Standard Density Weighing Kit and RS232 Interface.

Model

JA223J

Get Quote

Category : Densitometer

Brand : ShangTianJingYi

SKU : NB049954

Service :The delivery and service By NBCLab.Com

Overview

Shangtian Jingyi JA223J Density Electronic Balance is a High Accuracy weighing device designed for solid and liquid Density testing. It uses a new generation of electromagnetic force Sensor to provide stable and reliable weighing results, and comes standard with a Density weighing kit for easy operation.

Features

1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results 2. Large backlit high definition LCD LCD display, weighing results are clearly displayed 3. Front horizontal bubble adjustment, simple and intuitive operation 4. Weighing result Density direct reading, reaction time < 3S 5. Standard Density Weighing Kit, Easy to Install and Operate 6. Various weighing units: mg/g/ct/oz, etc 7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel 8. Optional lower hook design to meet users' special application needs

Principle

The Density Electronic Balance is based on the Electromagnetic Force Sensor technology, which directly calculates and displays the Density value by measuring the weight difference of the sample in air and liquid, combined with the preset algorithm. Its high-resolution Sensor ensures weighing accuracy and a fast Response Time of less than 3 seconds.

Applications

Solid Density Test, Liquid Density Test

Standards

External calibrating function

Steps

1. Install Density Weighing Kit 2. Adjust the equipment level through the front horizontal bubble 3. Place the sample for weighing 4. Read Density Results on LCD Display 5. Optional connection to RS232 interface to transfer data to Excel

Notice

• Ensure that the power supply is 110V-240V, within the range of 50Hz/60Hz • Operating Ambient Temperature should be maintained between 10 ° C and 30 ° C • Externally calibrated before use to ensure accuracy • Avoid overloading, Capacity 220g • Keep the pan clean, the size is φ 115mm • Pay attention to the difference between net weight 6.0kg and gross weight 9.0kg when transporting

Maximum Range
220g
readability
0.001g
Sexual repeability
±0.002g
linearity error
±0.002g
Pan Size
Φ115mm
calibrate
External calibrating function
Test sample
Solid Density and Liquid Density
peeling Range
full scale
dimensions
375*220*350mm
output interface
RS232
Glass cover Size
220*215*250mm
temperature Range
10℃-30℃
net weight
6.0kg
gross weight
9.0kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
