Overview

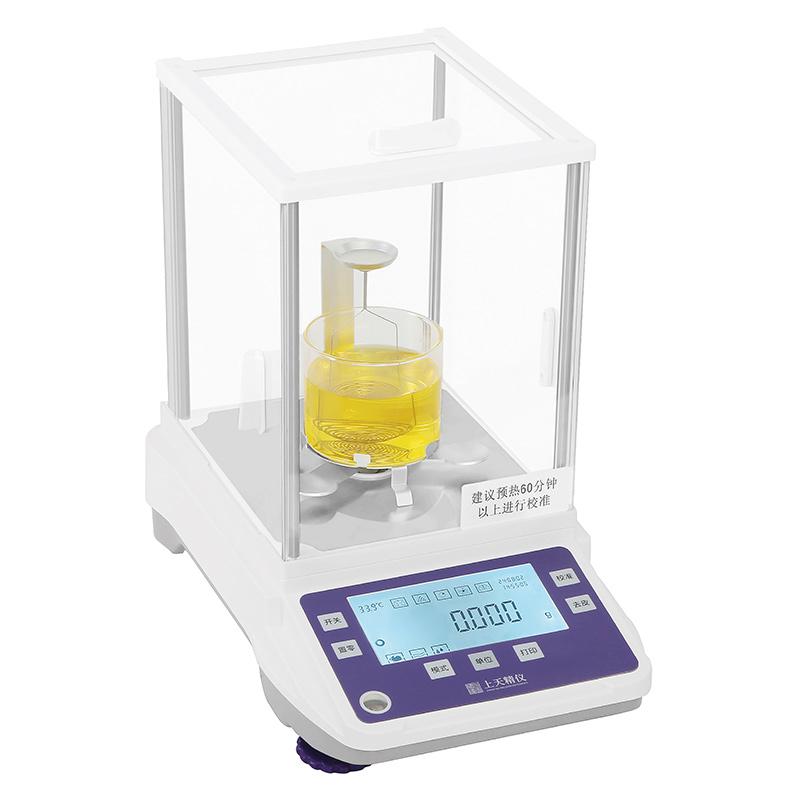

The JA323J Density Electronic Balance is a High Accuracy weighing device that uses a new generation of Electromagnetic Force Sensor to provide stable and reliable weighing results. It features an oversized backlit high definition LCD display, Density direct reading function, response time is less than 3 seconds, and comes standard with a Density weighing kit for solid and liquid Density testing.
Features
1. New Generation High Accuracy, High Resolution Electromagnetic Force Sensor, Providing Stable and Reliable Weighing Results
2. Large backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3 seconds
5. Standard Density Weighing Kit, Easy to Install and Operate
6. Various weighing units: mg/g/ct/oz, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Optional lower hook design to meet users' special application needs
9. Power supply: 110V-240V, 50Hz/60Hz
Principle
Based on Electromagnetic Force Sensor technology, Density Electronic Balance detects sample weight through High Accuracy Sensor, combined with Density calculation algorithm, directly reads Density value. The device utilizes external calibrating function to ensure accuracy and fast Response to weighing data.
Applications
Solid Density Test, Liquid Density Test
Steps
1. Install Density Weighing Kit
2. Adjust the equipment level through the front horizontal bubble
3. Place the sample for weighing
4. Read Density or weight data on LCD display
5. Optional use of RS232 interface to transfer data to PC applications
Notice
• Power frequency within 110V-240V range
• Operating Ambient Temperature at 10 ° C-30 ° C
• Externally calibrated before use to ensure accuracy
• Avoid overloading, Capacity 320g
• Regularly clean and maintain equipment to extend service life
