Overview

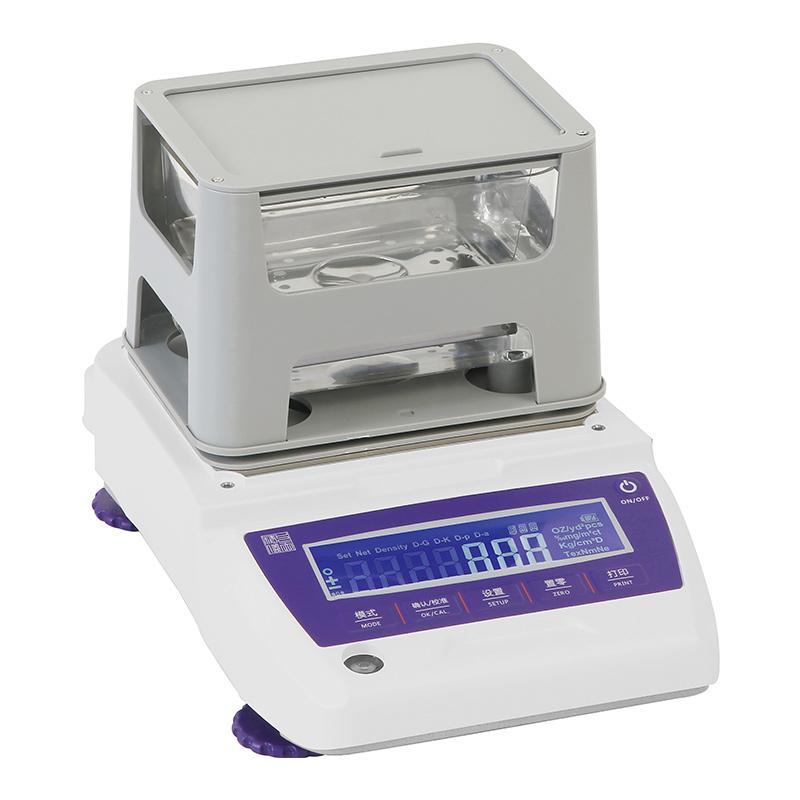

The GM3002J Density Electronic Balance is a High Accuracy weighing device from Shangtian Jingyi brand, specially designed for Density measurement, suitable for Density, Volume and Purity analysis of various solid materials. The product uses a new generation of Sensor technology to ensure stable and reliable weighing results, and is equipped with a high definition LCD display and convenient interface function.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Backlit high definition LCD LCD display, clear display
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3 seconds
5. Density upper and lower limits and specific gravity parameters can be customized
6. Measurable Solid Density, Volume and Metal Purity, K Number, etc
7. Standard RS232 interface, optional PC-STWC function to transfer data directly to Excel and other applications
8. Power support 110V-240V, 50Hz/60Hz
Principle
Density Electronic Balance measures the weight of the sample with a High Accuracy Sensor and calculates Density, Volume or Purity with preset parameters. The device uses an external calibrated function to ensure accuracy and uses an RS232 interface for data transmission with a fast Response Time of less than 3 seconds.
Applications
Density measurement, volume analysis, metal purity measurement, K number measurement
Steps
1. Connect the power supply and turn it on.
2. Use the front horizontal bubble to adjust the level of the equipment
3. Place the sample for weighing
4. Density upper and lower limits and specific gravity parameters as needed
5. Read Density, Volume or Purity Results
6. Optional use of RS232 interface to transfer data to PC applications
Notice
• Power frequency within 110V-240V range
• Operating Ambient Temperature should be maintained at 10 ° C-30 ° C
• Externally calibrated before use to ensure accuracy
• Avoid overloading, Capacity 300g
• Pay attention to the size and weight of the equipment, and place it reasonably
