Overview

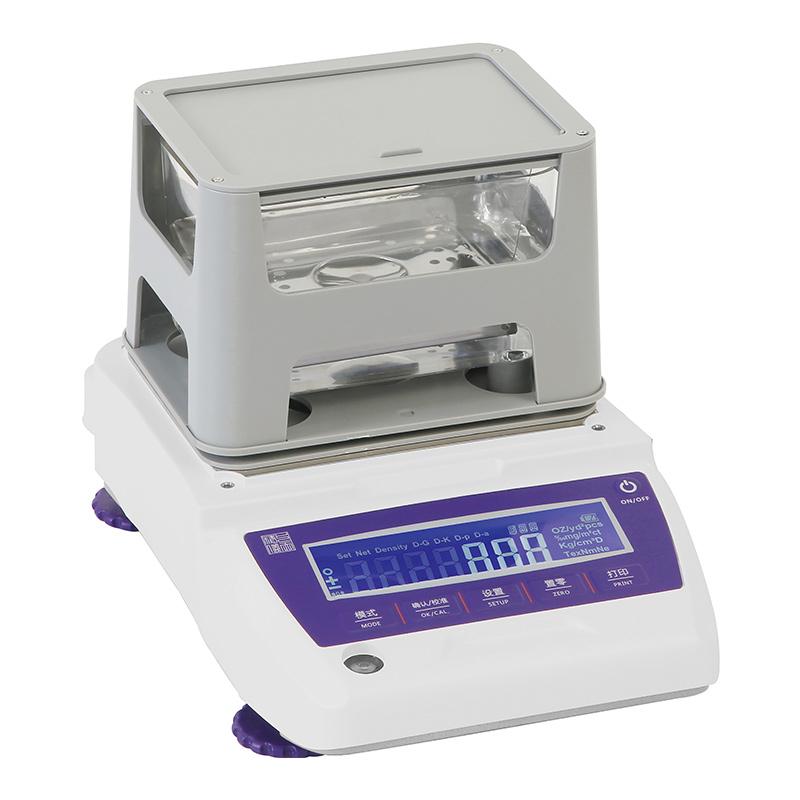

The GM6002J Density Electronic Balance is a High Accuracy weighing instrument that uses a new generation of Sensor technology to provide stable and reliable weighing results, suitable for a variety of measurement needs such as solid Density, volume and metal purity.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Density upper and lower limits and specific gravity parameters custom settings
6. Measurable Solid Density and Volume and Metal Purity, K Number, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance detects sample weight through High Accuracy Sensor, calculates values such as Density, Volume and Purity combined with preset parameters, and quickly displays on the LCD screen to achieve direct reading function.
Applications
Density measurement, volume measurement, metal purity measurement, K number measurement
Steps
1. Connect the power supply and turn it on.
2. Use the front horizontal bubble to adjust the instrument to a horizontal state
3. Place the sample for weighing
4. Customize Density upper and lower limits and specific gravity parameters as needed
5. Read results such as Density, Volume or Purity
6. Optional to transfer data to Excel through RS232 interface
Notice
• Power frequency within 110V-240V range
• Check the horizontal bubble before operation to ensure that the instrument is placed horizontally
• Operating Environment Temperature should be maintained between 10 ° C and 30 ° C
Periodically calibrated to ensure accuracy
• Avoid overloading, Capacity 600g
• Ensure that the interface connection is stable when transferring data
