Overview

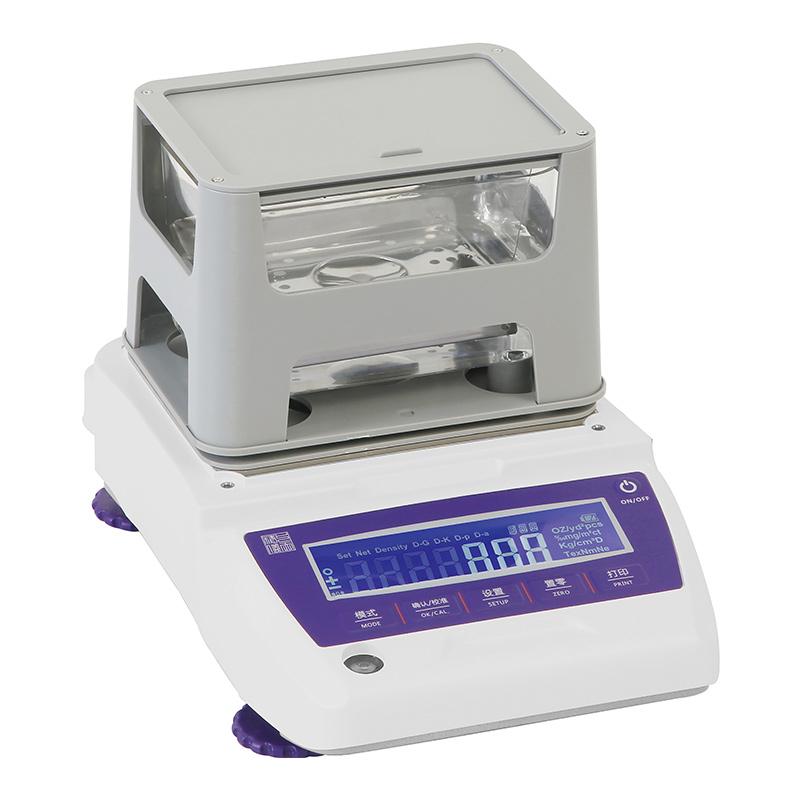

GM12002J Density Electronic Balance is a High Accuracy weighing device of Shangtian Jingyi brand, specially designed for Density measurement, Capacity 1200g, readability 0.01g, suitable for solid Density, volume and metal purity tests.
Features
1. Adopt a new generation of High Accuracy Sensors to provide stable and reliable weighing results
2. Equipped with backlit high definition LCD LCD display, clear display
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Density direct reading function, response time < 3 seconds
5. Density upper and lower limits and specific gravity parameter customization
6. Density, volume, metal purity and K number can be measured
7. Standard RS232 interface, optional PC-STWC function to transfer data directly to Excel and other applications
8. Power adapter 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance collects weighing data through the High Accuracy Sensor, combines preset parameters to calculate Density, volume, etc., and uses the LCD display to visually display the results, supporting fast Response and custom settings.
Applications
Density measurement, volume measurement, metal purity analysis, K number determination
Steps
1. Adjust the equipment level through the front horizontal bubble
2. Place the sample for weighing
3. Read Density, Volume and other direct reading results
4. Optional connection to RS232 interface to transfer data to PC application
Notice
• Ensure use within 10 ° C-30 ° C temperature range
• Periodically calibrate equipment using external calibrating function
• Avoid overloading, Capacity does not exceed 1200g
• Keep the equipment clean to prevent affecting accuracy
