Overview

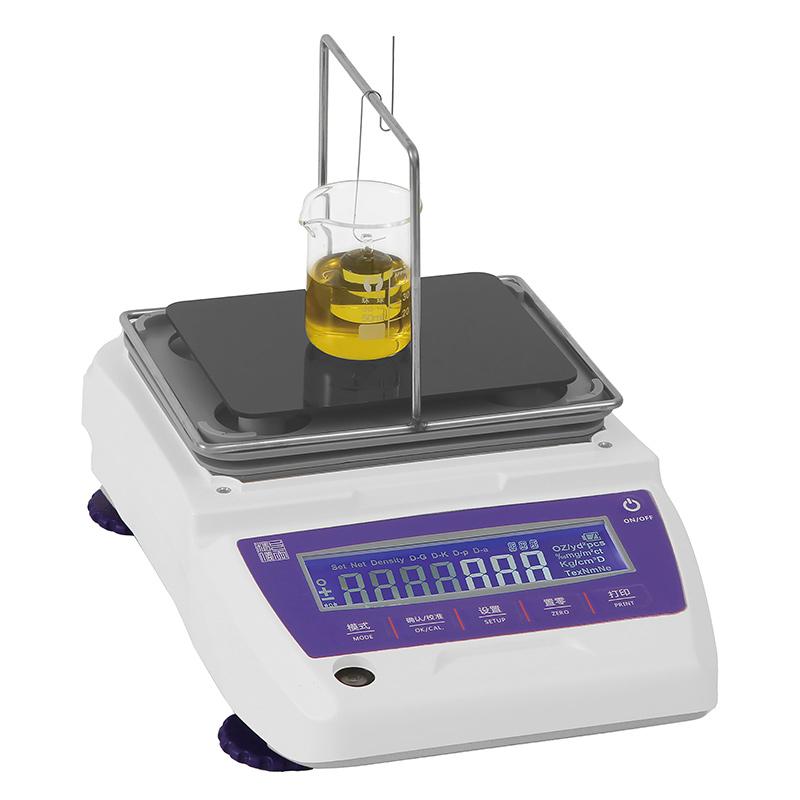

YM1003J Density Electronic Balance is a High Accuracy weighing device from Shangtian Jingyi brand, specially designed for liquid Density, Baume and concentration measurements. It adopts a new generation of Sensor and backlit high definition LCD display to ensure stable, reliable and clear weighing results.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Density upper and lower limits and specific gravity parameters custom settings
6. Measurable Liquid Density, Baume, concentration, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
Principle
The Density Electronic Balance detects sample weight with a High Accuracy Sensor, quickly calculates and directly reads Density values in combination with preset parameters. The external calibrating function ensures measurement accuracy and enables data transmission through the RS232 interface.
Applications
Density measurement, Baume measurement, concentration measurement
Standards
External calibrating function
Steps
1. Use the front horizontal bubble to adjust the device to a horizontal state
2. Turn on the power and wait for the device to initialize
3. Place the test sample for weighing
4. Read Density Direct Reading Results on LCD Display
5. Optional connection to RS232 interface to transfer data to PC application
Notice
* Power frequency in 110V-240V range, 50Hz/60Hz
* Before operation, calibrate the level of the equipment through the front horizontal bubble to avoid measurement errors
* Periodically calibrate equipment using external calibrating function to ensure accuracy
* Equipment operation temperature range is 10 ° C-30 ° C, avoid use in extreme temperatures
Make sure the RS232 connection is stable when transferring data to prevent data loss
