Overview

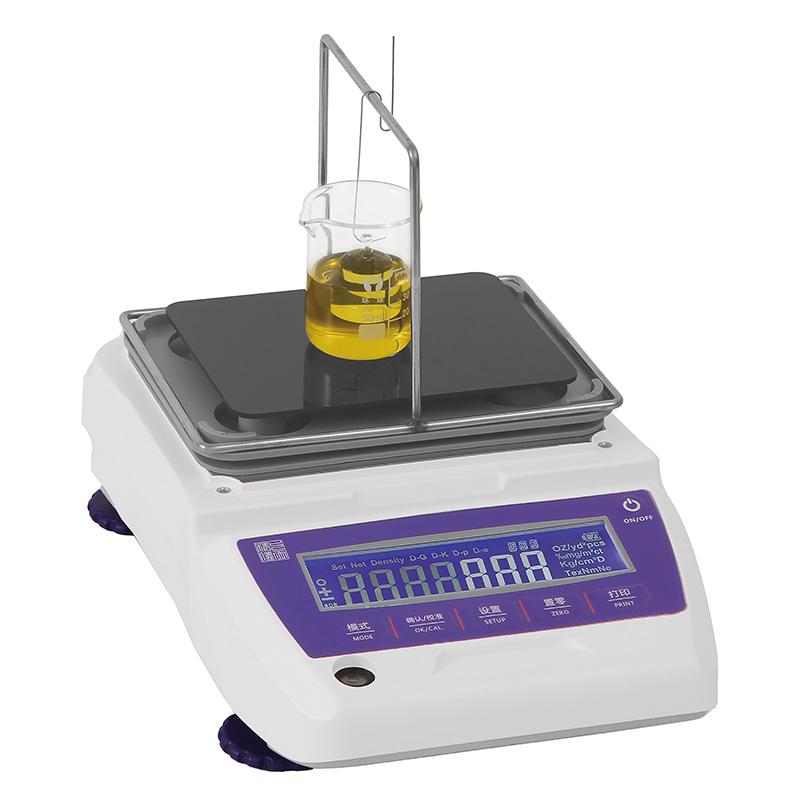

YM3002J Density Electronic Balance is a High Accuracy weighing device from Shangtian Jingyi brand, specially designed for Density measurement. It uses a new generation of Sensor technology to provide stable and reliable weighing results, and has a direct Density reading function, which is suitable for rapid testing of various parameters such as liquid Density, Baume and concentration.
Features
1. A New Generation of High Accuracy Sensors, Providing Stable and Reliable Weighing Results
2. Backlit high definition LCD LCD display, weighing results are clearly displayed
3. Front horizontal bubble adjustment, simple and intuitive operation
4. Weighing result Density direct reading, reaction time < 3S
5. Density upper and lower limits and specific gravity parameters custom settings
6. Measurable Liquid Density, Baume, concentration, etc
7. Standard RS232 interface, optional PC-STWC function to transfer weighing data directly to open applications such as Excel
8. Power supply: 110V-240V, 50Hz/60Hz
Principle
The YM3002J Density Electronic Balance is based on High Accuracy Sensor technology, which directly calculates the Density value by weighing the sample and using the built-in algorithm. The device has a fast Response during the weighing process, combined with custom parameter settings, to achieve direct reading output of parameters such as Density, Baume and concentration.
Applications
Density measurement, Baume measurement, concentration analysis
Standards
External calibrating function
Steps
1. Connect the power supply and turn on the device.
2. Use the front level bubble to adjust the level
3. Place the sample for weighing
4. Read Density Direct Reading Results or Custom Parameters
5. Optional connection to RS232 interface to transfer data to Excel
Notice
• Power frequency within 110V-240V range
• Check the level bubble before operation to ensure the level of the equipment
• Avoid use in environments with temperatures beyond the 10 ° C-30 ° C range
Periodic external calibrating to maintain accuracy
• Ensure that the interface connection is stable when transferring data
