Overview

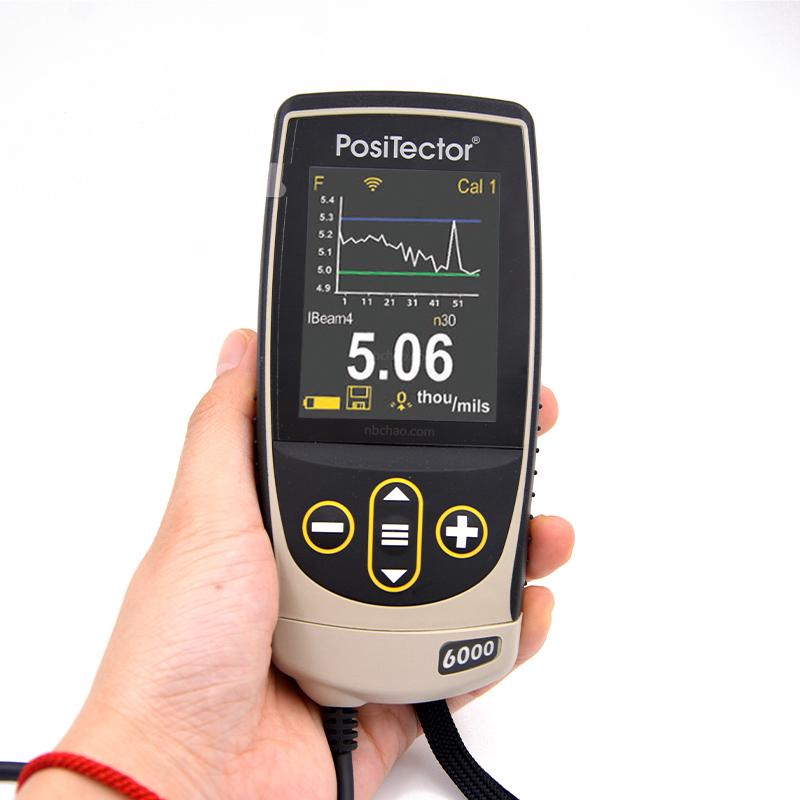

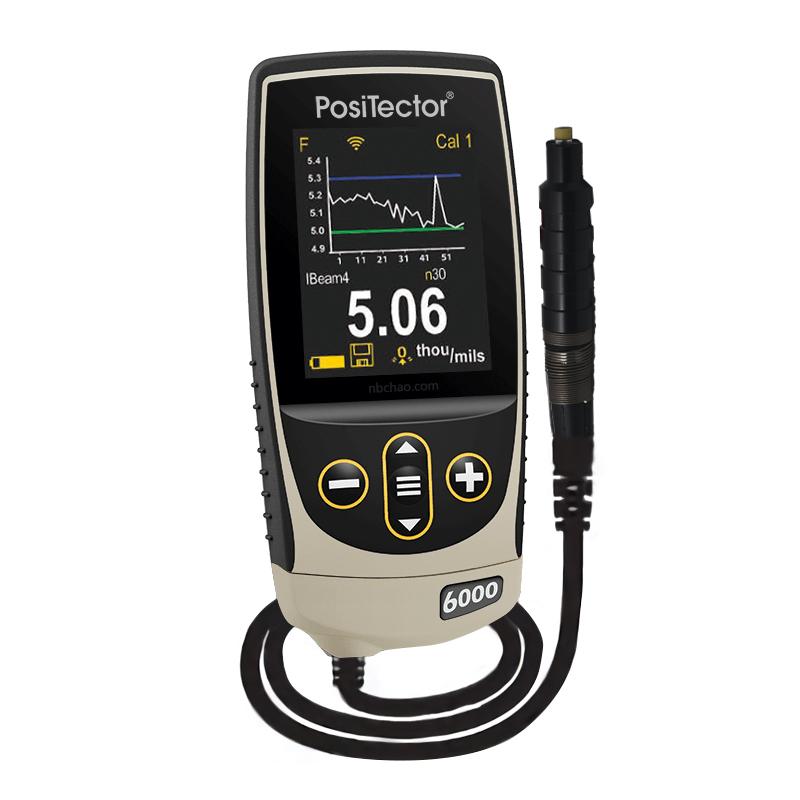

Defelsko PosiTector 6000 F0S3 film thickness gauge is an advanced magnetic thickness gauge with micro Probe, split structure design, free replacement Probe, micro Probe is suitable for the measurement of nonmagnetic Coating thickness on ferrous metal surfaces in small workpieces or narrow areas. The instrument has high Measurement accuracy, Measurement range is 0~ 1150 μm.
Features
1. split structure design, free replacement of Probes
2. Miniature Probe for small workpiece or narrow area measurement
3. Measurement accuracy with +/- 3% error

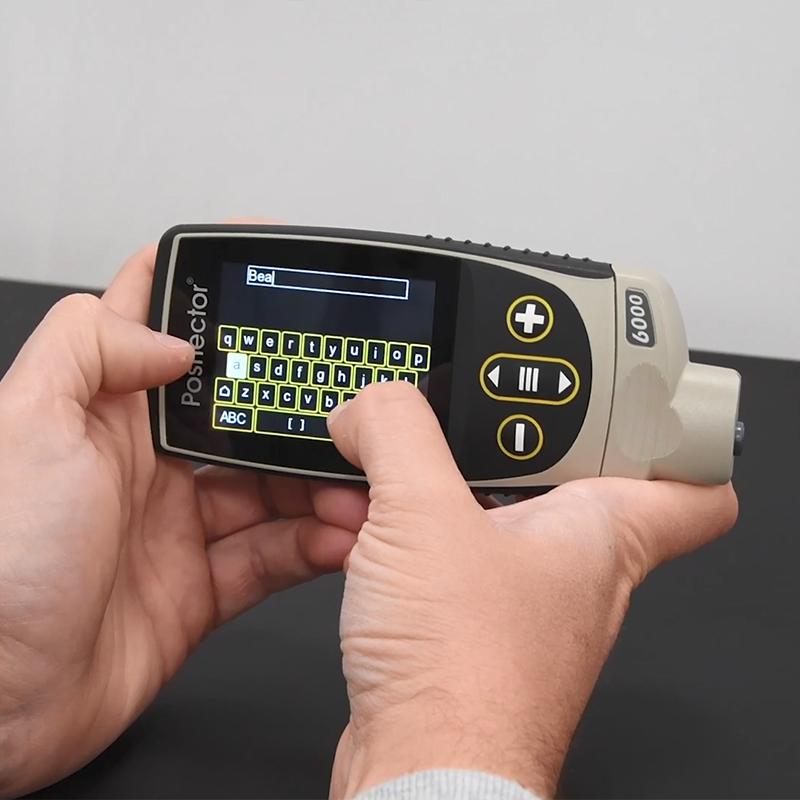

4.2.8-Inch Color Touchscreen, Easy to operate
5. Support USB and Bluetooth Interface
6. Equipped with PosiSoft software suite
7. IP65 Protection Ratings
Fast measurement with more than 180 readings per minute
9. Data storage for 250,000 Measured values
10. Support a variety of statistical functions and graphic functions
Principle
The principle of magnetic Induction is used for measurement, which is suitable for nonmagnetic Coating thickness detection on ferrous metal substrates.
Applications
Coating thickness measurement of ferrous metal nonmagnetic surface, small workpiece measurement, narrow area measurement
Standards
ISO 2178、ISO 2360、ISO 2808、PrEN ISO 19840、ASTM B499、ASTM D1186、ASTM D1400、ASTM D7091、ASTM E376、ASTM G12、BS3900-C5、SSPC-PA2
Steps

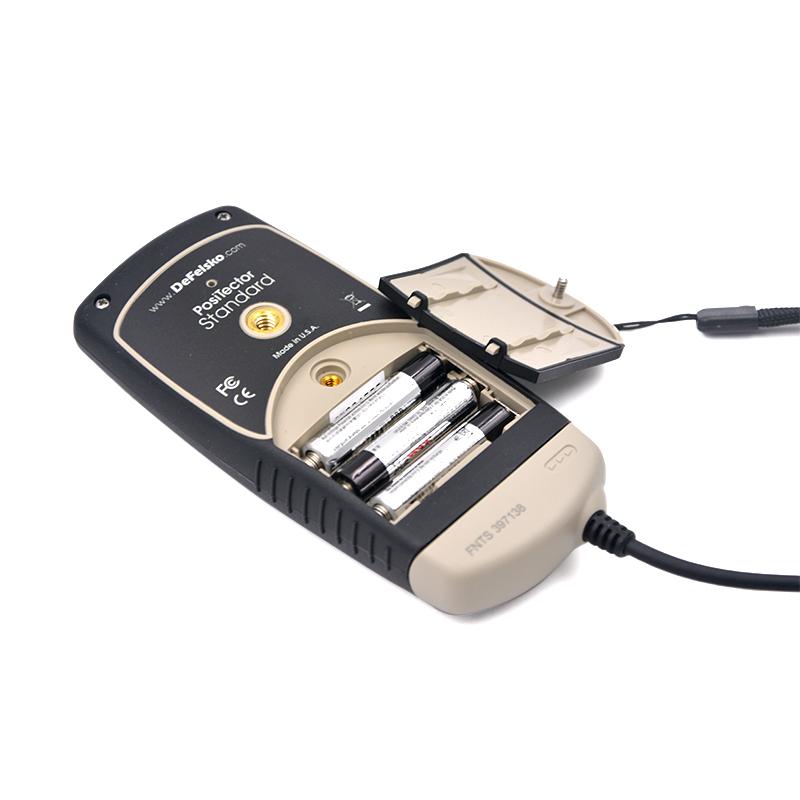

1. Install 3 * AAA alkaline battery
2. Select the F0S3 Micro Probe as needed
3. Perform measurements on nonmagnetic coatings on ferrous metal surfaces
4. View measurement results and statistics through Touchscreen
5. Transfer data to PosiSoft software using USB or Bluetooth interface
Notice
• Only for nonmagnetic coating measurements on ferrous metal substrates
• Measurement range 0~ 1150μm
• Make sure Probe is clean before use
• Regularly calibrated to ensure Measurement accuracy
Avoid use in extreme environments
• Pay attention to the battery power and replace it in time
