Overview

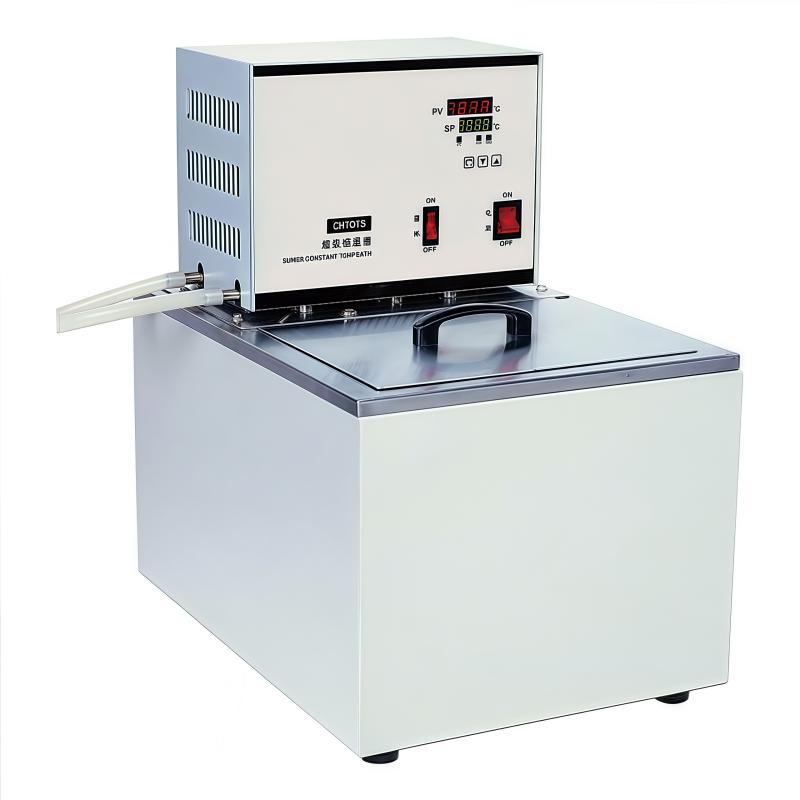

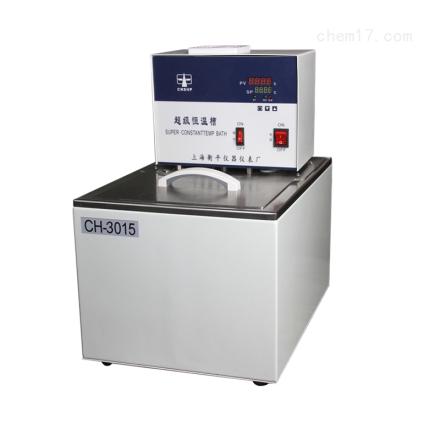

Shangtian Jingyi CH1015 Super Thermostatic Sink is a thermostatic device with a microcomputer thermostatic control system. It has the characteristics of High Accuracy Temperature Control and Multifunctional Applications, and is suitable for a variety of chemical reaction operations and storage.
Features
1. Design of a new generation of microcomputer thermostatic control system
2. Adopt imported PT100 temperature transducer
3. With breaking protection and over-temperature alarm function
4. Temperature Fluctuation +/- 0.05 ℃
5. Display resolution 0.1 ° C
6. Pump flow rate 8L/min
Principle
The thermostatic water tank precisely adjusts the temperature through the microcomputer control system, uses the imported PT100 temperature transducer to monitor the temperature change, and maintains the liquid medium thermostatic in combination with the internal/external circulation mode to achieve a stable temperature environment.
Applications
Petroleum, chemical, biological engineering
Steps
1. Select the appropriate liquid medium (e.g. alcohol, water, silicone oil, etc.)
2. Set the required temperature range (RT + 5~ 95 ℃)
3. Start the device for internal/external circulation
4. Monitor temperature display and alarm function
Notice
• Make sure the liquid medium is selected correctly before use, and trifluoromethane should be used in the ultra-low temperature working interval
• Regularly check whether the temperature transducer and alarm function are normal
• Avoid operating in environments beyond the Temperature range
• Pay attention to the power and weight of the equipment to ensure stable placement
