Overview

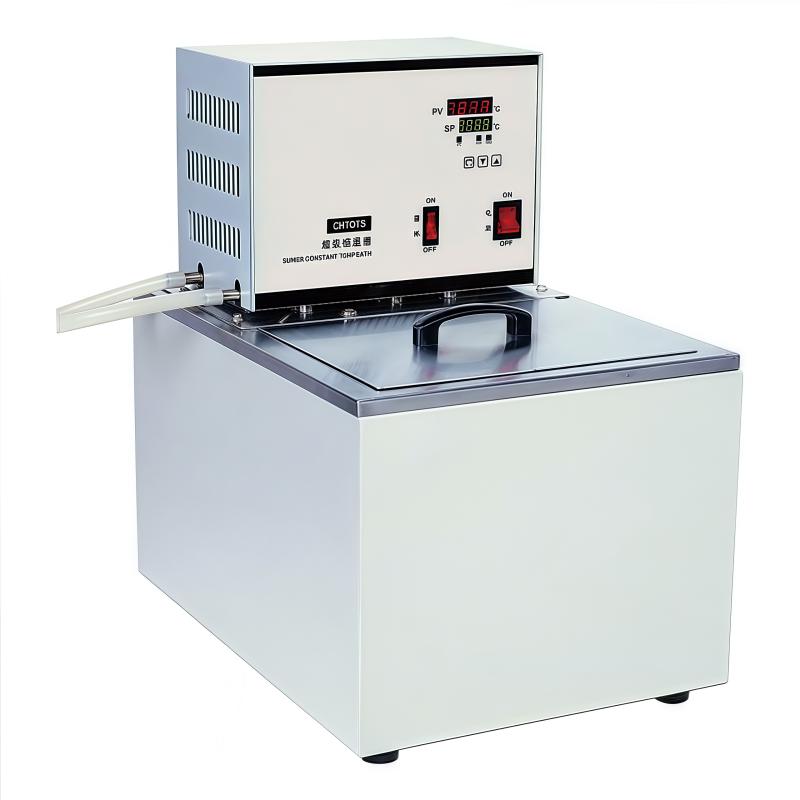

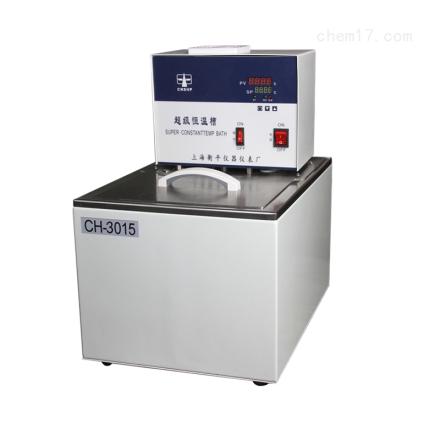

Shangtian Jingyi CH1515 super thermostatic sink is a microcomputer thermostatic control system equipment, Temperature range of 40~ 150 ℃, Tank volume of 15L, suitable for a variety of liquid media such as alcohol, water, silicone oil, etc., widely used in petroleum, chemical, biological engineering fields.
Features
1. Design of a new generation of microcomputer thermostatic control system
2. Adopt imported PT100 temperature transducer
3. With breaking protection and over-temperature alarm function
4. Temperature Fluctuation +/- 0.05 ℃
5. Display resolution 0.1 ° C
6. Pump flow rate 8L/min
Principle
The thermostatic water tank precisely adjusts the temperature through the microcomputer thermostatic control system, uses the domestic circulation mode to keep the liquid medium thermostatic in the tank, and combines real-time monitoring of the temperature transducer to ensure temperature stability.
Applications
Petroleum, chemical, biological engineering
Steps
1. Place the thermostatic sink in a stable position
2. Add an appropriate amount of liquid medium such as alcohol, water or silicone oil
3. Connect the power supply and turn on the device
4. Set the required temperature range
5. Start the domestic circulation system for thermostatic operation
6. Turn off the power and clean the equipment after use
Notice
• Make sure the equipment is placed on a smooth surface before use
• Select the appropriate liquid medium, and use trifluoromethane for ultra-low temperature work
• Regularly check the temperature transducer and alarm function
Avoid operating in humid or flammable environments
• Disconnect the power supply when cleaning to prevent liquids from entering the interior
