Overview

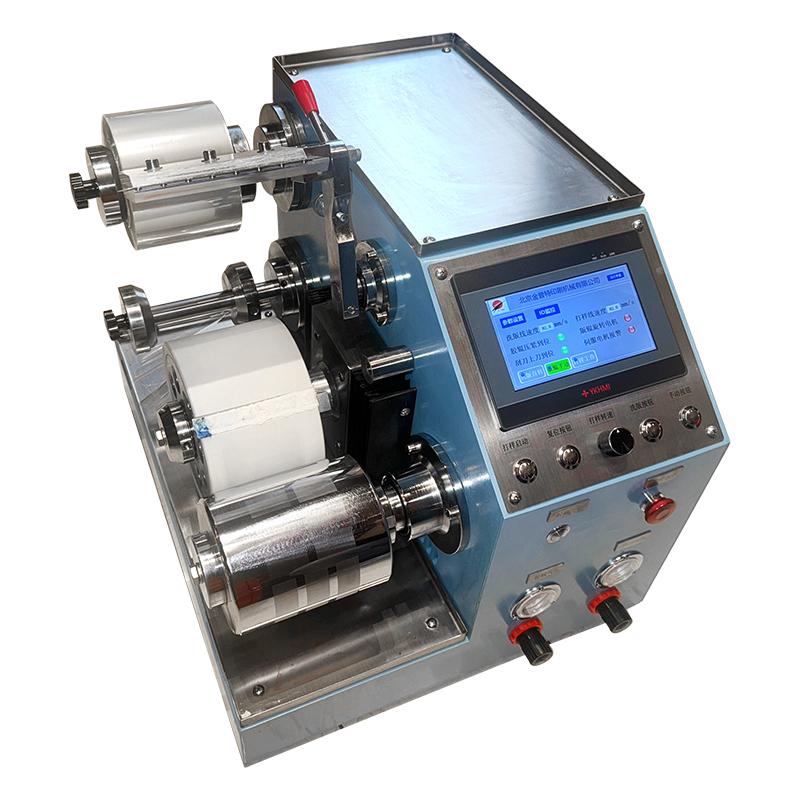

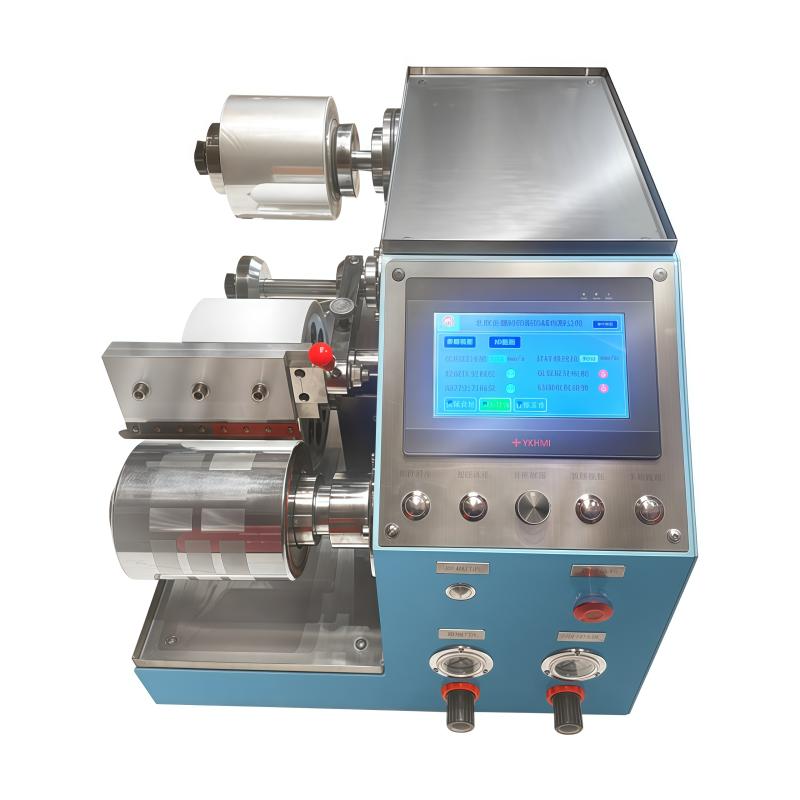

HuiNuo HN-AY150 intelligent Ink Proofer adopts dual-station discharge and servo numerical control motor design to achieve industrial-grade precision proofing. Equipped with a fully intelligent LCD system, it can adjust the speed (300 rpm adjustable) and the number of turns (0.1 ° accuracy) in real time. Double unwinding constant tension ensures stability. Cooperate with Swiss imported scraper and customized High Accuracy plate rollers to improve scraper efficiency and prolong the life of consumables. Added optional exhaust gas centralized recovery system directional emission solvent, 75 ° hardness rubber roller accurately matches the needs of the printing factory, 5 minutes dual-station simultaneous color development, help reduce the cost of 60% waste ink loss, 10 minutes to complete customer signature.
Features
1. Touchscreen operation interface
2. Automatic and servo motor control
3. Double station discharge (superimposed color is completed in one step) (single/double station optional)
4. Pneumatic embossing roller (constant pressure)
5. Pneumatic tool holder (constant pressure)
6. Establish automatic ink matching and color scheme of color library to effectively reduce the stock of old inks
Principle

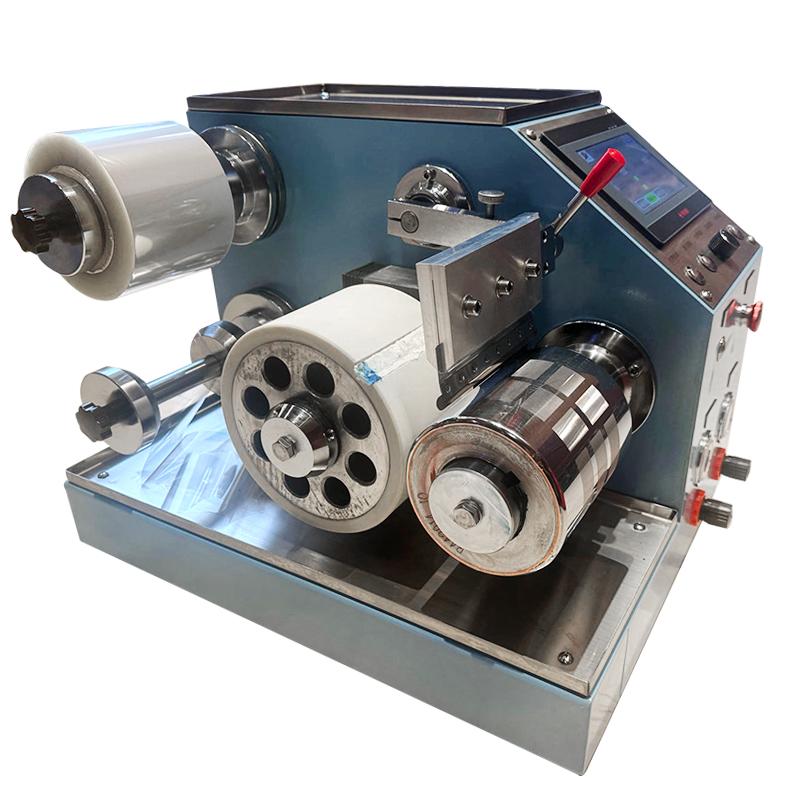

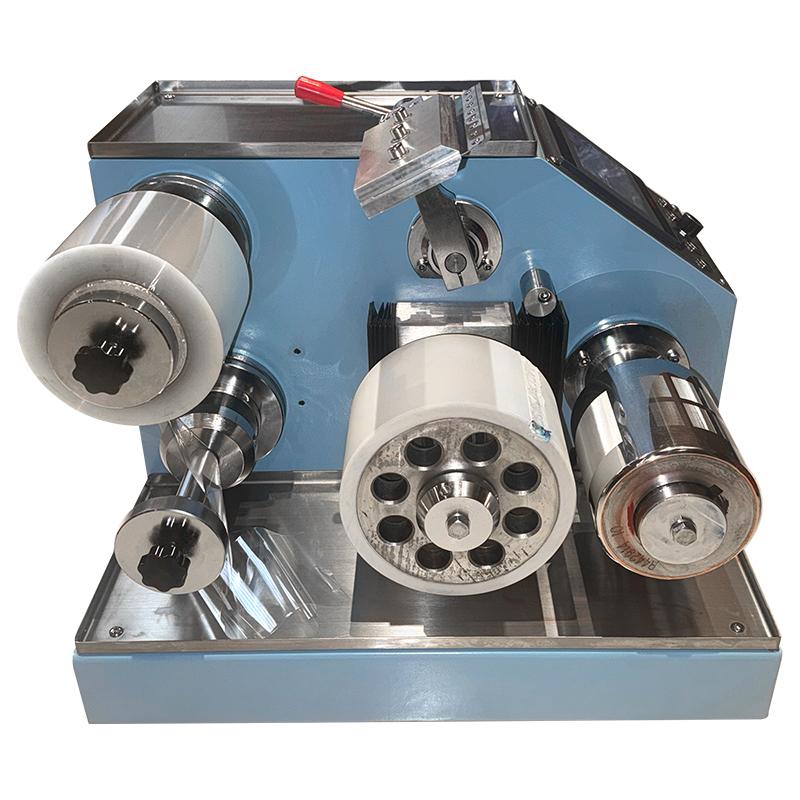

The intelligent proofing machine adopts an integrated structure of fully intelligent liquid crystal display, servo numerical control motor drive and servo control system, and drives the spindle mechanism of the plate roller through the timing belt. All control parameters and measurement data are displayed and adjusted in real time on the LCD screen, with reliable and accurate repeability positioning function. The host includes a double unwinding part (constant tension design), a pressing roller part (silicone rubber roller), a scraping part (imported components from Switzerland), a plate roller part (customized High Accuracy plate roller) and an optional exhaust gas centralized storage part (high-speed fan discharge solvent).
Applications
Inks factory, printing enterprise
Standards
export standard
Steps
1. Use in room temperature 10 ℃ -35 ℃, relative humidity not more than 80% environment
2. Stable installation and calibration of levels
3. Ensure that there is no vibration or corrosive medium
4. Connect the 220V power supply (voltage fluctuation does not exceed +/- 10%) and ground it strictly

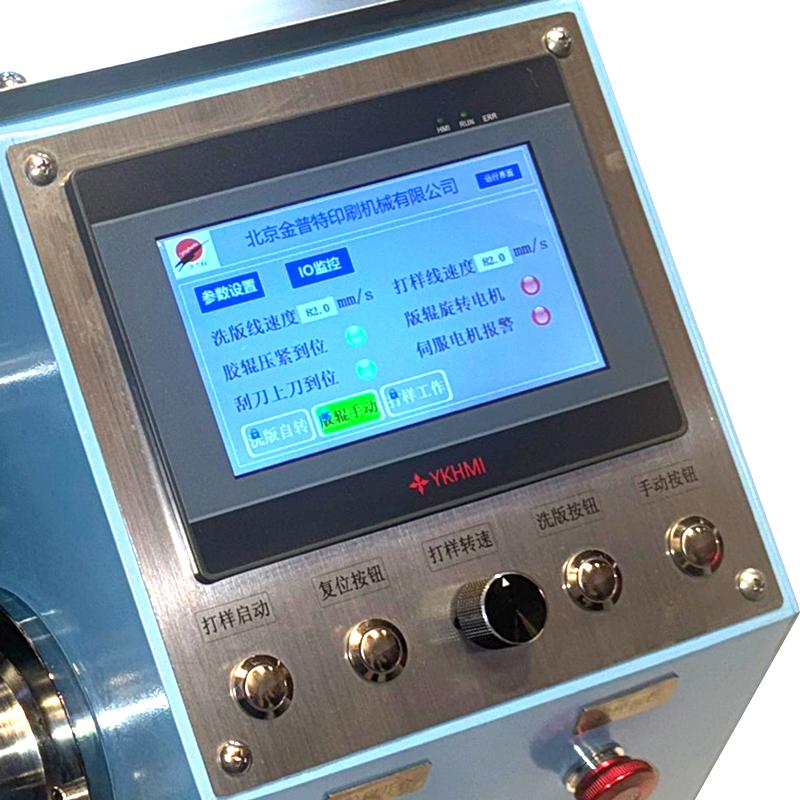

5. Operate through the panel function settings (such as emergency stop, proofing speed gear, plate roller cleaning, manual, reset, rubber roller opening and closing)
Notice
• The working environment should be within the range of room temperature 10 ℃ -35 ℃, and the relative humidity should not exceed 80%
• Levels must be properly installed and calibrated on a solid foundation or bench
• Operating Environment Should Be No Vibration
• No corrosive medium around
• Power frequency fluctuations should not exceed +/- 10% of rated voltage
The power supply needs to have strict grounding protection
