Overview

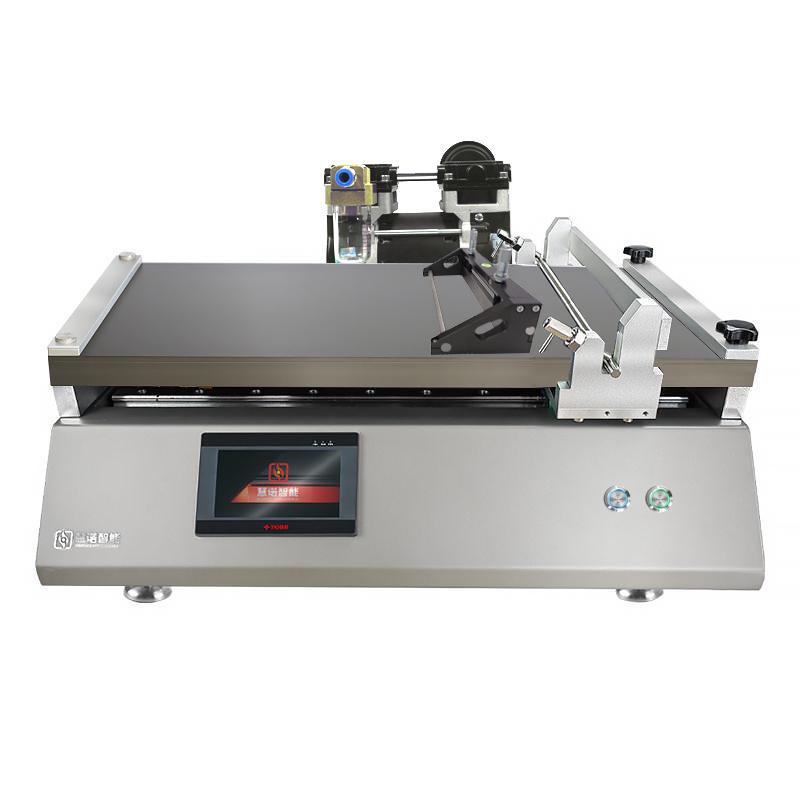

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. Vacuum chuck and heating
Principle
Automatic Film Applicator controls the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film. High Accuracy automated film is achieved by using bar Spreader and Blade Coating, combined with Vacuum chuck to fix the substrate.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (Spreader length, Spreader speed, film thickness, etc.)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar Spreader or Blade Coating)
5. Start Automatic Film Applicator for Automatic Spreader
6. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the power supply of the device is connected correctly before operation
• Spreader parameter settings need to be adjusted according to sample characteristics
• Clean Spreader head and countertop regularly to maintain accuracy
• Make sure the substrate is flat when using Vacuum chuck
• Pay attention to temperature control when using the heating function
• Equipment maintenance should be carried out according to the instructions
