Overview

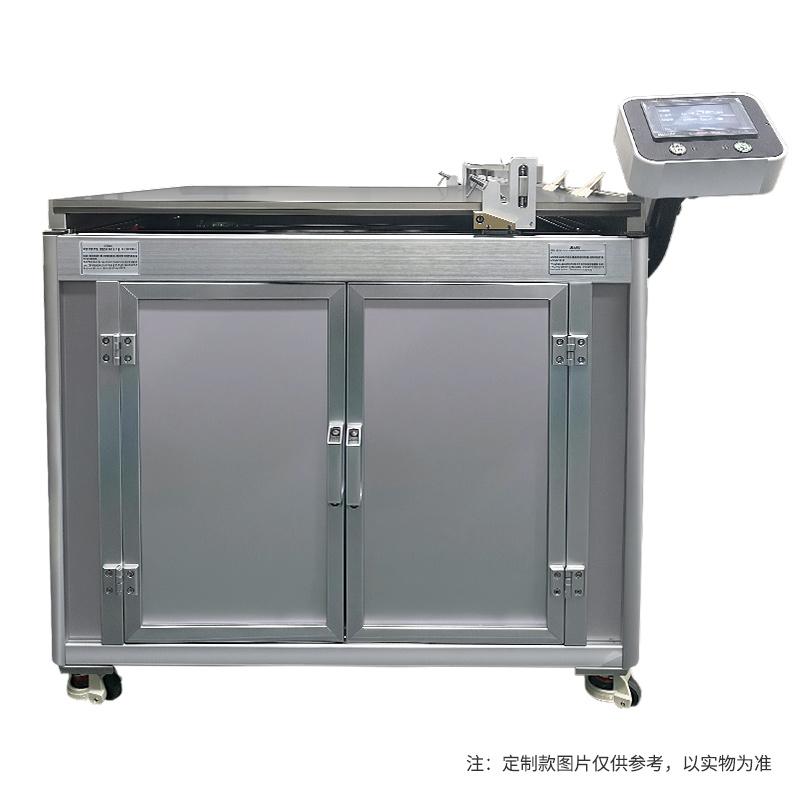

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. High flatness hard aluminum alloy baseplate, scratch-resistant and scratch-resistant
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator adopts bar Spreader and Blade Coating, which are driven by servo motors to achieve precise adjustment of coating speed and length.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate (e.g. Glass, cardboard, fabric) and fix it on the Spreader table
2. Select the coating method (bar or drawdown blade) and install the corresponding Spreader head
3. Set Spreader length and Spreader speed parameters through Touchscreen
4. Start the device for automatic filming
5. Clean the Spreader head after the Spreader is completed
Notice
• Make sure the substrate is firmly fixed before Spreader
• Select the appropriate coating method and Film thickness parameters according to sample characteristics
• Clean the Spreader head in time after the Spreader is completed, especially the clamshell drawdown blade head
• Pay attention to safety during operation and avoid contact with moving parts
• Regularly check the running status of all parts of the equipment
