Overview

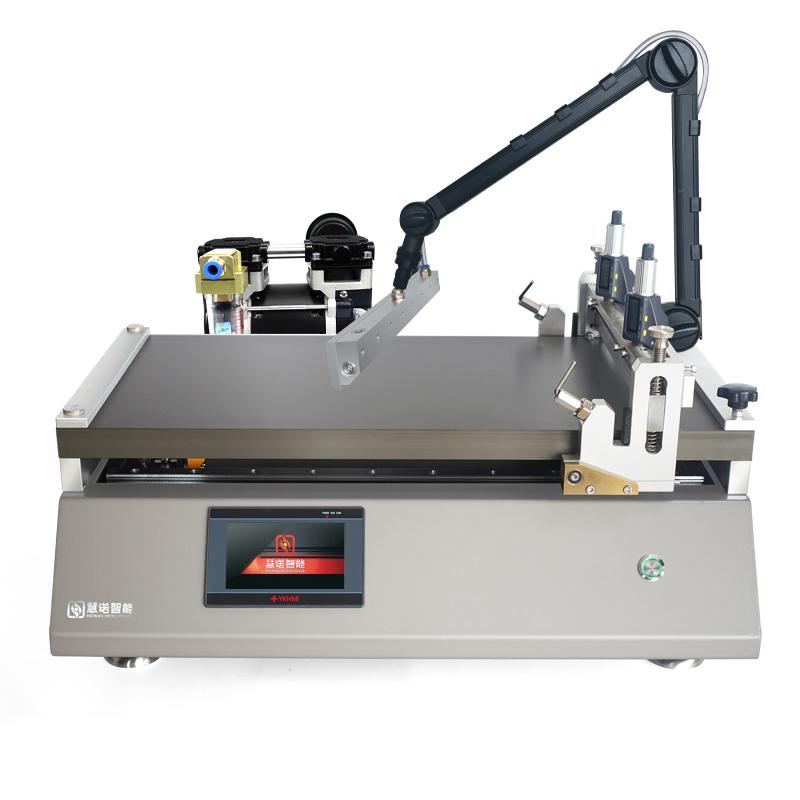

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and Spreader length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. Vacuum chuck and heating
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two methods of bar Spreader and Blade Coating are used, combined with Vacuum chuck to fix the substrate, and the servo motor drives to achieve accurate Spreader.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Fix the substrate to the Spreader stage using Vacuum chuck or fixture
3. Select the coating method (bar or drawdown blade) and set the Spreader parameter
4. Adjust Spreader Length and Speed via Touchscreen
5. Start the device for automatic filming
6. Clean the Spreader head after the Spreader is completed
Notice
• Make sure that the power supply of the equipment meets the requirements before use (100V~ 220V/50~ 60HZ)
• Check whether the substrate is firmly fixed before Spreader
• Select the appropriate coating method and Film thickness parameters according to sample properties
• Regular cleaning of Spreader head to maintain accuracy
• Pay attention to the heating temperature during operation to avoid burns
• Customized functions need to confirm specifications in advance
