Overview

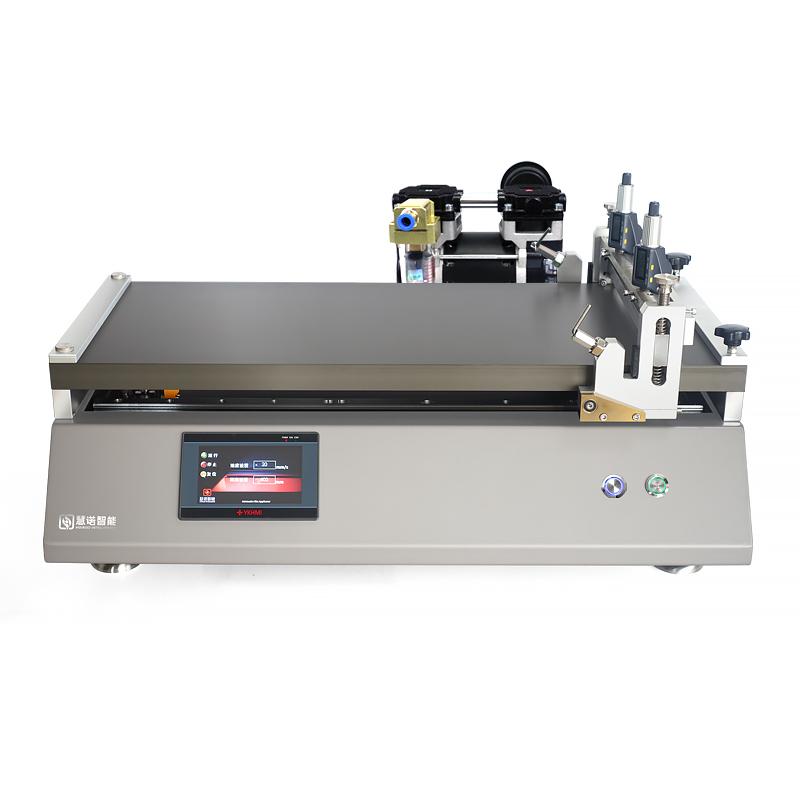

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. This Automatic Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, with Vacuum chuck function, innovative bar installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and Spreader length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
Features
1. Surface hard treatment aluminum alloy countertop, high hardness and wear resistance, the flatness of the countertop is tested by imported High Accuracy instruments
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Spreader length and Spreader speed can be adjusted freely
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two coating methods, bar and drawdown blade, combined with Vacuum chuck function to fix the substrate, realize High Accuracy automatic film.
Applications
Coatings, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials and other film sample preparation
Steps
1. Prepare the substrate (e.g. film, cardboard, aluminum foil) and place it on the Spreader stage
2. Choose the bar or Blade Coating method as needed
3. Set Spreader length and Spreader speed parameters through Touchscreen
4. Start the Vacuum chuck function to fix the soft substrate
5. Start the automated film process
6. After the Spreader is completed, clean and maintain it
Notice
• Power frequency matching before use (standard 220V/50HZ, can be customized 110V/60HZ)
• Check substrate flatness and fixation before Spreader
• Select the appropriate coating method and Film thickness parameters according to sample characteristics
• Regularly clean Spreader head and countertop to maintain equipment accuracy
• Pay attention to safety during operation and avoid contact with moving parts
