Overview

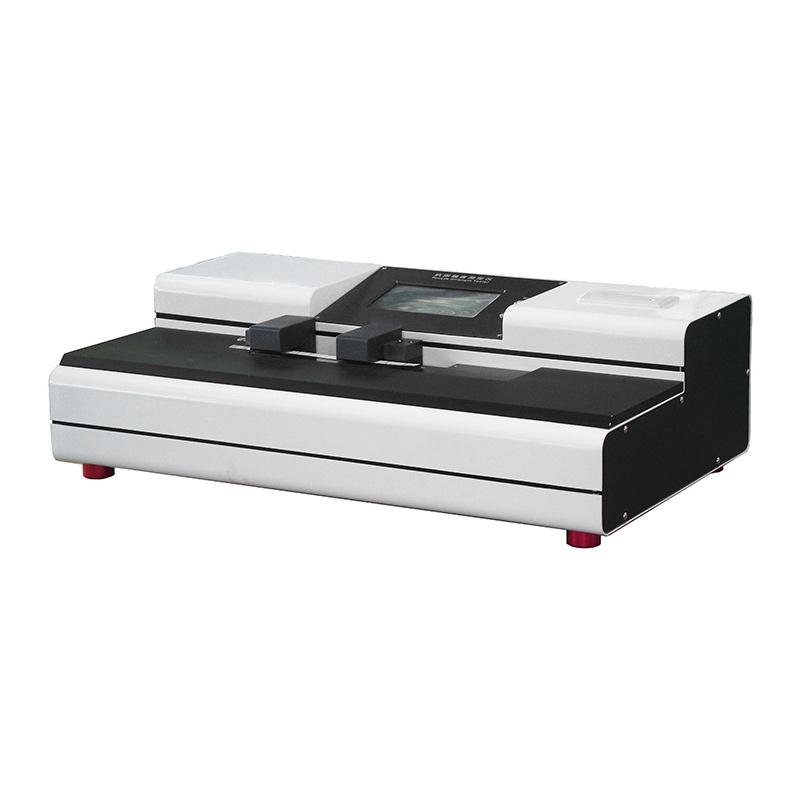

Yunda YD-KZ-W horizontal computer tensile instrument adopts a unique horizontal design. It is a new type of instrument researched and developed according to the requirements of the new national standards. It is mainly used in papermaking, Plastic film, chemical fiber, aluminum foil production and other industries and Miscellaneous production and commodity inspection departments that need to measure the Tensile Strength of objects.
Features
1. The transmission mechanism is guided by ball screws and linear guides, resulting in smooth and accurate transmission.
2. Adopt servo stepper motor for low noise and accurate control.
3. Real-time display of tensile curves.
4. ARM processor improves the Response speed of the instrument and ensures the real-time measurement.
5. Sudden power failure data saving function, data retention before power failure after startup and can continue testing.
6. Features of automatic reset, data memory, overload protection, and fault self-diagnosis.
7. Communicate with microcomputer software (purchased separately).
Principle
The instrument drives the ball screw drive mechanism through the servo stepper motor, cooperates with the linear guide rail to guide, applies tensile force to the sample, real-time measurement of anti-tension, elongation and other parameters, and performs data processing and display through the ARM processor.
Applications
Paper, Cardboard, Aluminum Foil, Aluminum Plastic Tape, Plastic film, Miscellaneous Non-metallic materials, Non-woven fabrics
Standards
GB/T 12914、GB/T 2792、GB/T 24218.3、GB/T 1040、TAPPI T 494
Functions
1. Determination of Tensile Strength, Tensile Strength, Tensile Strength
2. Determination of elongation, fracture length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index, Modulus of Elasticity
3. Adhesive tape Peel Strength measurement
Specifications
Working environment: temperature (10~ 35) ℃, relative humidity ≤ 85%
Measurement range: (0.15~ 30) N/(1~ 300) N/(3~ 1000) N (range optional)
Indication resolution: 0.01N (WL30)/0.1N (WL300)/0.1N (WL1000)
Indication Error ： +/- 1% (range 5%~ 100%)
Working Travel: 300mm
Specimen width: 15mm (25mm, 50mm optional)
Stretching speed: (1~ 500) mm/min (can be adjusted arbitrarily)
Printing: Thermal printer
Communication interface: RS232 (default) (USB, WIFI optional)
Display: 7-inch color touch display
Power supply voltage: AC (100~ 240) V, (50/60) Hz 100W
Dimensions: 800 × 400 × 300 mm
Net weight: about 35kg
