$ 5172.00Ex works
Adopt bar and drawdown blade double coating method, coating speed 1~ 300mm/s stepless speed regulation, film thickness control accuracy of +/- 0.001mm, clamshell drawdown blade design is easy to clean, Vacuum chuck function is suitable for soft substrate Spreader.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB050252
Service :The delivery and service By NBCLab.Com

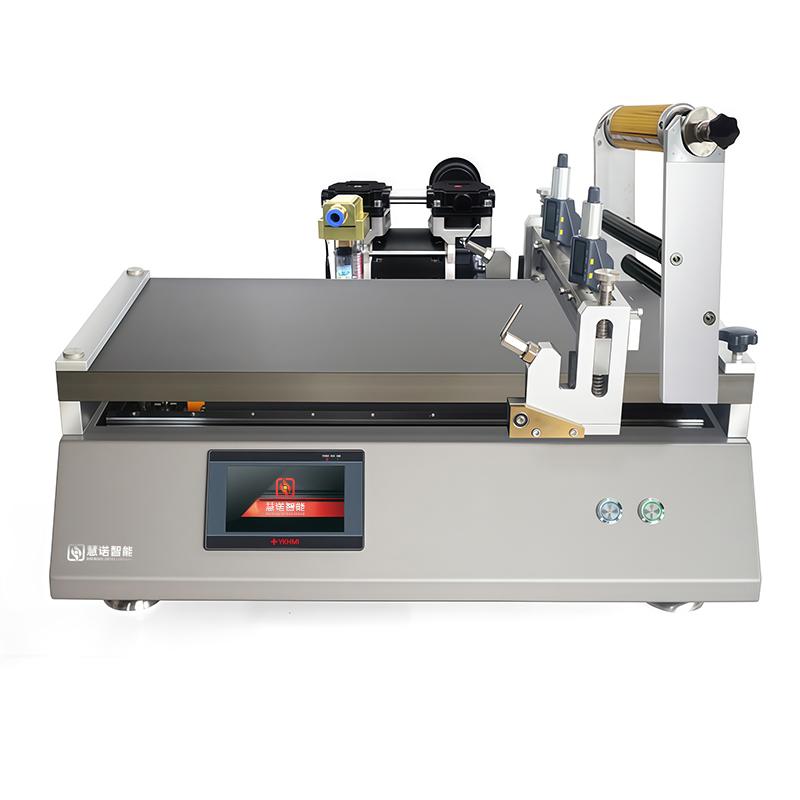

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, using two coating methods of bar and drawdown blade, with Vacuum chuck function. The new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automated film is achieved by using two coating methods, bar and drawdown blade, combined with Vacuum chuck and fixture to fix the substrate.
Moulding proofing in laboratories such as research institutes in colleges and universities, New material, lithium battery, glue, hot-melt adhesive, etc. It is suitable for film sample preparation such as Coating, inks, paints, Stock, hot-melt adhesive, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials, etc. It can be scraped on film, cardboard, aluminum foil and copper foil.
1. Prepare the substrate and samples 2. Fix the substrate to the Spreader stage using Vacuum chuck or fixture 3. Select the coating method (bar or drawdown blade) and install the corresponding Spreader head 4. Set application length and Spreader speed via Touchscreen 5. Start the device for automatic filming 6. After the Spreader is completed, clean the Spreader head
• Power supply voltage matching before use (standard 220V/50HZ, can be customized 110V/60HZ) • The size of the coating table and the effective coating area are subject to the actual customization • The meyer rod coating thickness range is selected according to different rod numbers • Vacuum chuck function is suitable for soft substrates to ensure the normal operation of the vacuum pump • Pay attention to safety during operation and avoid contact with moving parts • Regularly clean Spreader head and countertop to maintain equipment accuracy
You may consider the TM3200pro/FJ automatic film applicator. Its tabletop is made of hard-treated aluminum alloy, which is flat and wear-resistant, suitable for coating on substrates such as aluminum foil and copper foil. The flip-top blade head is easy to clean and can handle viscous materials like hot melt adhesive and glue. With a wide coating thickness range (0.1-10mm), it meets the sample preparation needs of various formulations.
Recommended is the HUNUO TM3200pro/FJ Automatic Film Coater. This equipment utilizes both wire bar and blade coating methods and is equipped with original imported high-precision wire bars, achieving a coating accuracy of up to ±0.001mm. It is suitable for sample preparation requiring high coating uniformity, such as lithium battery separators. The device features a vacuum adsorption function, which securely holds soft separator substrates in place, ensuring stable coating and preventing wrinkling or shifting.
For viscous samples such as hot melt adhesives and adhesives, we recommend the Huinuo TM3200pro/FJ. A standout feature is its flip-top blade coating head design, which allows for easy and thorough cleaning of the blade and coating area when opened, effectively addressing residue issues. Additionally, its hard-treated aluminum alloy tabletop is wear-resistant and easy to clean. Combined with vacuum adsorption to secure films or aluminum foil, it ensures your coating experiments are both efficient and hassle-free.
The Hainuo TM3200pro/FJ Automatic Film Applicator meets your needs. It integrates two coating methods: wire bar and blade. The wire bar is suitable for thin, micron-level precision coatings, while the blade mode can handle thicker coatings ranging from 0.1 to 10 millimeters, making it a versatile machine. In terms of operation, it is equipped with a color touchscreen, allowing intuitive and free adjustment of coating speed and length. It is easy to use and can meet your diverse experimental requirements.
