$ 6447.00Ex works
With bar and drawdown blade two coating methods, coating speed 1~ 300mm/s stepless speed regulation, Spreader accuracy of +/- 0.001mm, clamshell design for easy cleaning, support Vacuum chuck fixed soft substrate.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB050272
Service :The delivery and service By NBCLab.Com
Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
University research institutes, New materials, Lithium batteries, Glues, hot-melt adhesives, Coatings, inks, paints, Stock, Lithium batteries, Pressure sensitive adhesives, Resin, Polymer materials
1. Prepare the substrate and samples 2. Set application length and Spreader speed via Touchscreen 3. Select Bar or Blade Coating Method 4. Use Vacuum chuck or fixture to fix the substrate 5. Start Film Applicator for Auto Spreader 6. Clean the Spreader head after finishing the Spreader
• Power supply voltage matching before operation (standard 220V/50HZ, customizable 110V/60HZ) • Spreader thickness should be selected according to the bar number or drawdown blade setting • Vacuum chuck function is suitable for soft substrates such as thin films to ensure that the vacuum hole is clean • Spreader cleaning clamshell drawdown blade and bar in time • Customized size and parameters are subject to the actual situation, confirm the specifications before use

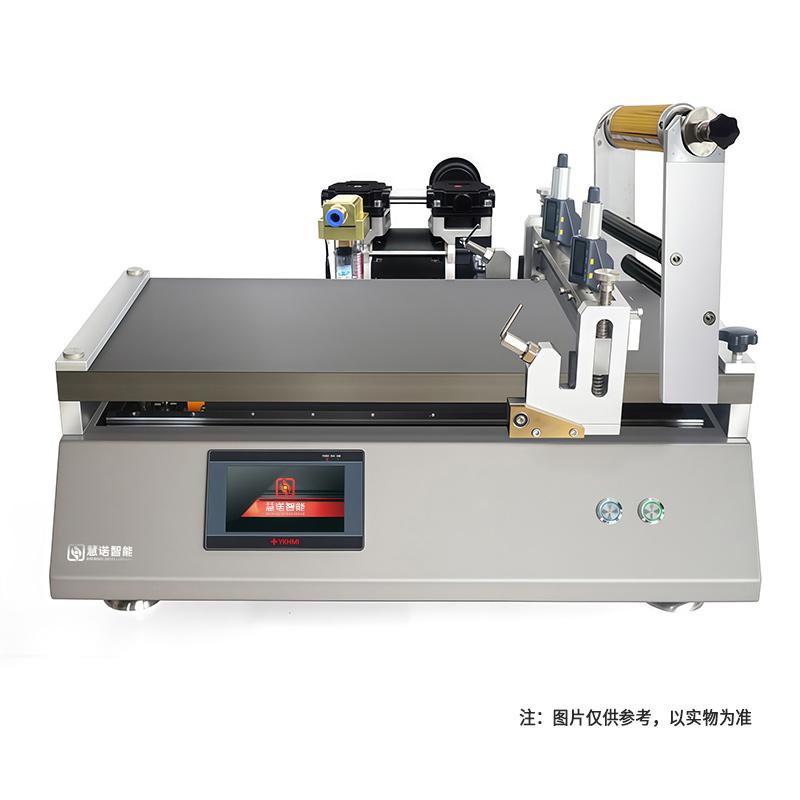

Recommend the Huinuo TM3200pro/FJ01 Automatic Coating Machine. It utilizes two coating methods: wire bar and blade coating, with wire bar coating precision reaching up to ±0.001mm, making it suitable for high-precision film preparation such as lithium battery materials. Its vacuum adsorption function firmly secures soft separator substrates, ensuring a stable and uniform coating process.
For frequent testing of adhesive samples, we recommend this automatic film applicator. Its flip-top blade head design allows for quick cleaning by simply opening it, eliminating the hassle of disassembling traditional blades. Additionally, it features touchscreen controls, allowing you to freely adjust the coating speed and length. Its simple operation can significantly improve the sample preparation efficiency in your laboratory.
If precise control of film thickness is required, it is recommended to prioritize the wire rod coating function of this machine. It is equipped with original imported high-precision wire rods, where different rod numbers correspond to different thicknesses, offering high accuracy and excellent coating uniformity. This makes it suitable for preparing uniform functional coatings on substrates such as thin films and aluminum foil. The doctor blade mode, on the other hand, is more suitable for applications requiring thicker coatings.
