Overview

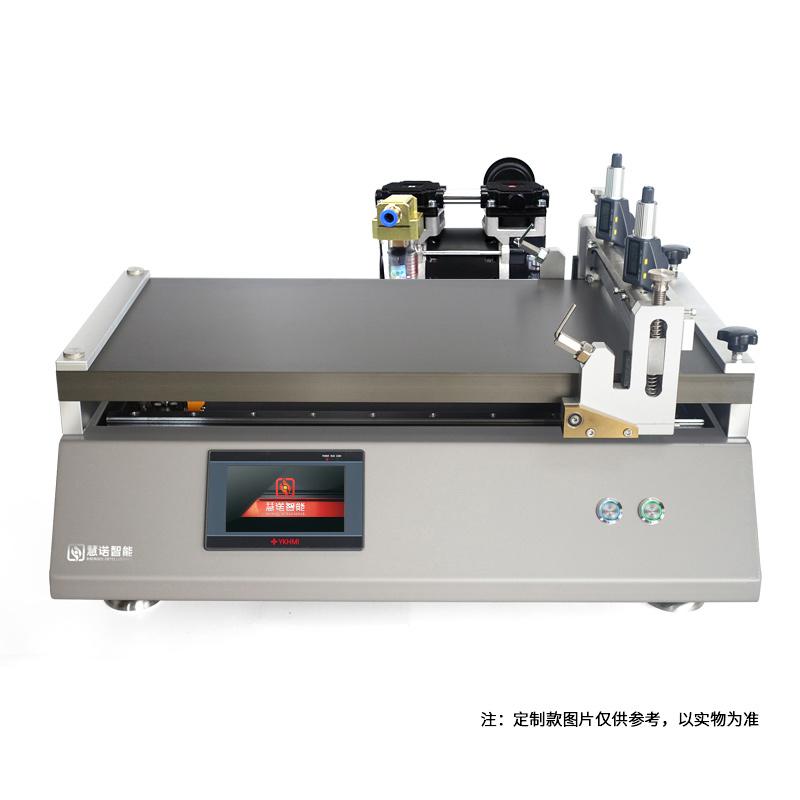

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Two coating methods, bar and drawdown blade, combined with Vacuum chuck function to fix the substrate, realize High Accuracy automatic film.
Applications
Coatings, inks, paints, Stock, hot-melt adhesives, Lithium batteries, Pressure sensitive adhesives, Resins, Glues, Polymer materials
Steps
1. Prepare the substrate and samples
2. Choose the bar or Blade Coating method according to your needs
3. Set application length and Spreader speed parameters on Touchscreen
4. Start the device for automatic filming
5. Clean the Spreader head after the Spreader is completed
Notice
• Make sure the equipment power supply meets the requirements before use (220V/50HZ or customized 110V/60HZ)
• Check Vacuum chuck function before Spreader
• Choose the appropriate fixing method (Vacuum chuck or fixture) according to the type of substrate
• Spreader cleaning clamshell drawdown blade and bar in time
• Pay attention to safety during operation and avoid contact with moving parts
