Overview

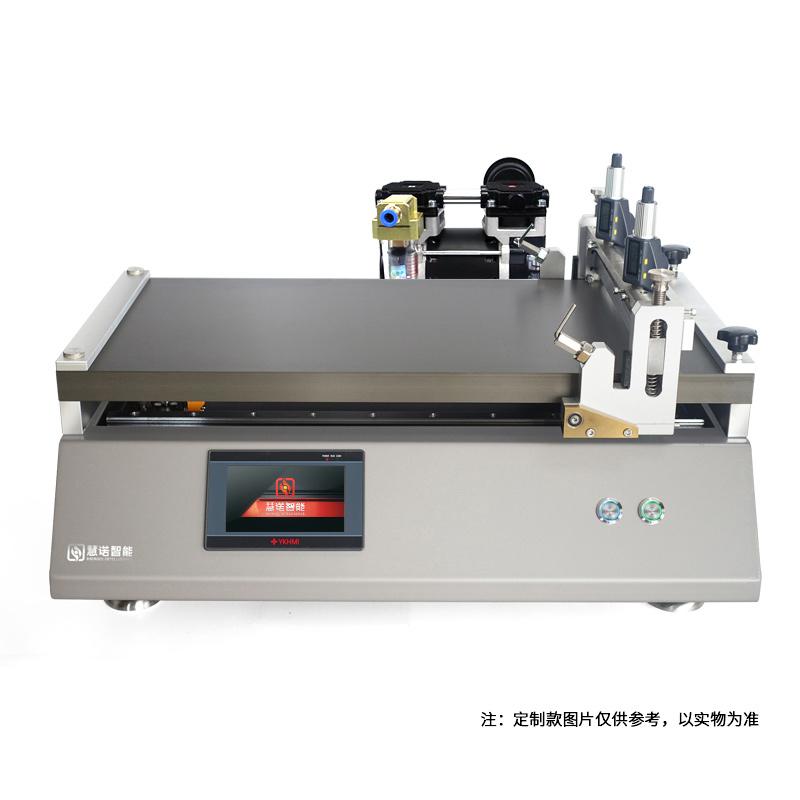

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Set Spreader parameters (application length, Spreader speed)
2. Select coating method (bar or drawdown blade)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Start Film Applicator for Auto Spreader
5. Clean the Spreader head after finishing the Spreader
Notice
• Make sure the countertop is flat and clean before Spreader
• Select the appropriate coating method and parameters according to the sample characteristics
• Regular cleaning of Spreader head to maintain accuracy
• Pay attention to safety during operation and avoid contact with heating parts
• Turn off the power supply and vacuum pump in time after use
