Overview

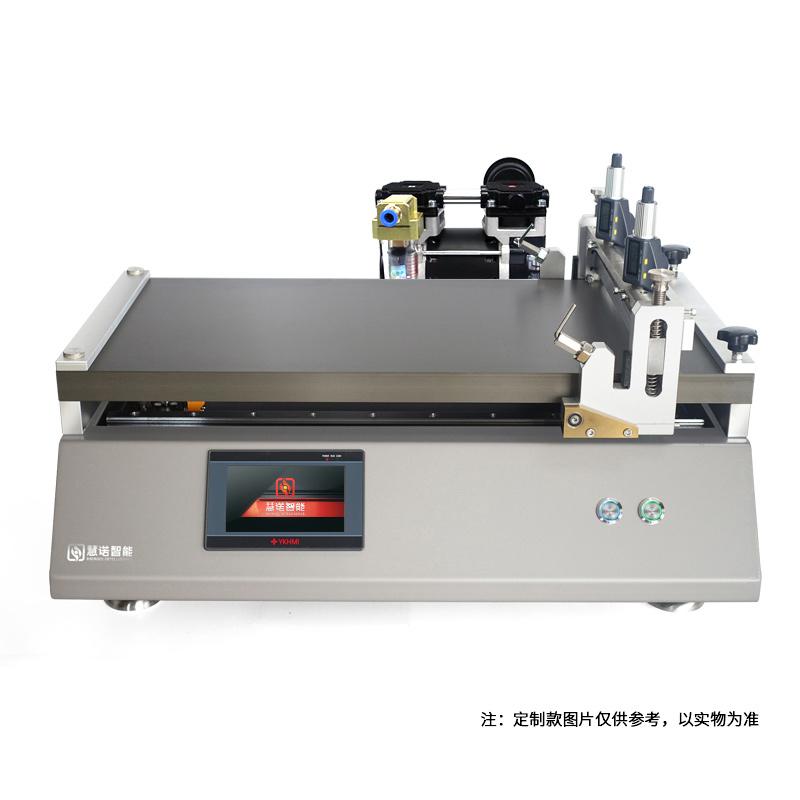

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Set Spreader parameters (application length, Spreader speed)
2. Fixed substrate (using Vacuum chuck or fixture)
3. Select coating method (bar or drawdown blade)
4. Start Film Applicator for automatic filming
5. Clean the Spreader head after finishing the film
Notice
• Film Applicator for laboratory environment, do not use in humid or dusty places
• Make sure the substrate is firmly fixed before operation to avoid displacement during Spreader
• Pay attention to the clamshell design when cleaning the Spreader head, which is convenient for thorough cleaning
• Select the appropriate Spreader thickness and speed parameters according to the sample characteristics
• Regularly check whether the Vacuum chuck system and heating function are normal
