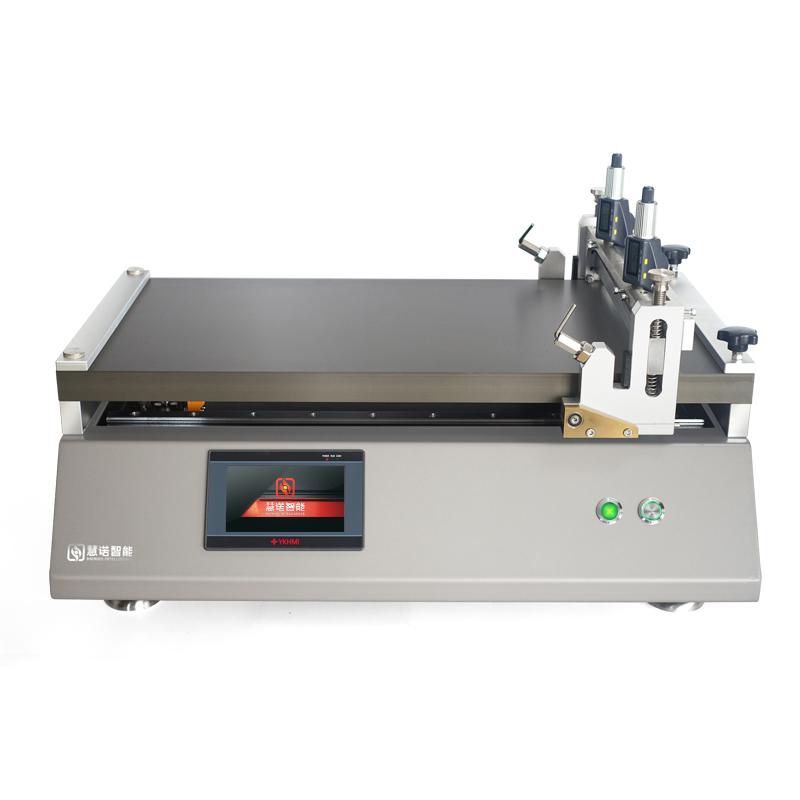

HuiNuo TM3000Pro/20 Automatic Film Applicator bar drawdown blade Coater Smoothness aluminum alloy baseplate

Name: HuiNuo TM3000Pro/20 Automatic Film Applicator bar drawdown blade Coater Smoothness aluminum alloy baseplate
Brand: HuiNuo
SKU: NB050279
Price: 7244.0 USD
Availability: PreOrder

$ 7244.00Ex works

With bar and drawdown blade two coating methods, coating speed 1~ 300mm/s stepless speed regulation, clamshell drawdown blade design for easy cleaning, bar accuracy of +/- 0.001mm, Blade Coating thickness range of 0.1~ 10mm, effective coating area 1500 * 300mm.

Model

TM3000pro/20

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050279

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.

Features

1. Smoothness hard aluminum alloy baseplate, scratch resistance 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.

Applications

Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples

Steps

1. Prepare the substrate and samples 2. Set Spreader parameters (application length, Spreader speed) 3. Select coating method (bar or drawdown blade) 4. Start Film Applicator for Auto Spreader 5. Clean the Spreader head after finishing the Spreader

Notice

• Make sure the substrate is firmly fixed before Spreader • Select the appropriate coating method and thickness according to the sample characteristics • Clean the Spreader head in time after the Spreader is completed • Pay attention to safety during operation and avoid contact with moving parts • Regularly check the operating status of the equipment

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Carbide aluminum baseplate (Glass plate optional)
Coating table Size
1740*330mm
Coating Size
1500*300mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
Bar accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
300mm
Blade Coating accuracy
±0.003mm
Drive motor
Servo motor
Power
400w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
Dimension
1760 * 440 * 430Mm (subject to the actual product)
optional feature
Heating, Vacuum chuck

[Q] Our lab primarily focuses on lithium battery slurry coating, and we are looking for an automatic film applicator that can precisely control film thickness and is easy to operate. Do you have any recommendations?

Recommend the Huinuo TM3000pro/20 Automatic Coating Machine. It features a high-end differential regulator and servo motor drive, with wire rod coating accuracy up to ±0.001mm and blade coating accuracy up to ±0.003mm, enabling precise control of the coating thickness for lithium battery slurries. The touchscreen operation is user-friendly, allowing free adjustment of coating speed and length, making it ideal for high-precision sample preparation in lithium battery laboratories.

[Q] Our institute often needs to apply uniform thin films on new material adhesives and resin samples for performance testing. Which type of film applicator would be most suitable?

For coating film preparation of new material glues and resins, it is recommended to use the Huinuo TM3000pro/20. It combines both wire rod and blade coating methods, offering high uniformity with the wire rod and a wide thickness range (0.1-10mm) with the blade, making it adaptable to samples of varying viscosities. The flip-top blade head design facilitates easy cleaning, effectively preventing cross-contamination between different samples and improving experimental efficiency.

[Q] We are conducting paint testing and need to apply coatings on glass and cardboard. The requirements for substrate flatness and film thickness consistency are high. What functions should we look for in a film applicator?

For applying coatings on glass and cardboard, the Hunuo TM3000pro/20 is recommended. Its base plate is made of high-flatness hard aluminum alloy (with an optional glass plate), ensuring stable placement of the substrate. Equipped with original imported high-precision wire-wound rods, it guarantees high consistency in film thickness. Additionally, its blade coating width of 300mm meets the requirements for conventional sample sizes, while the servo motor drive ensures a smoother and more uniform coating process.
