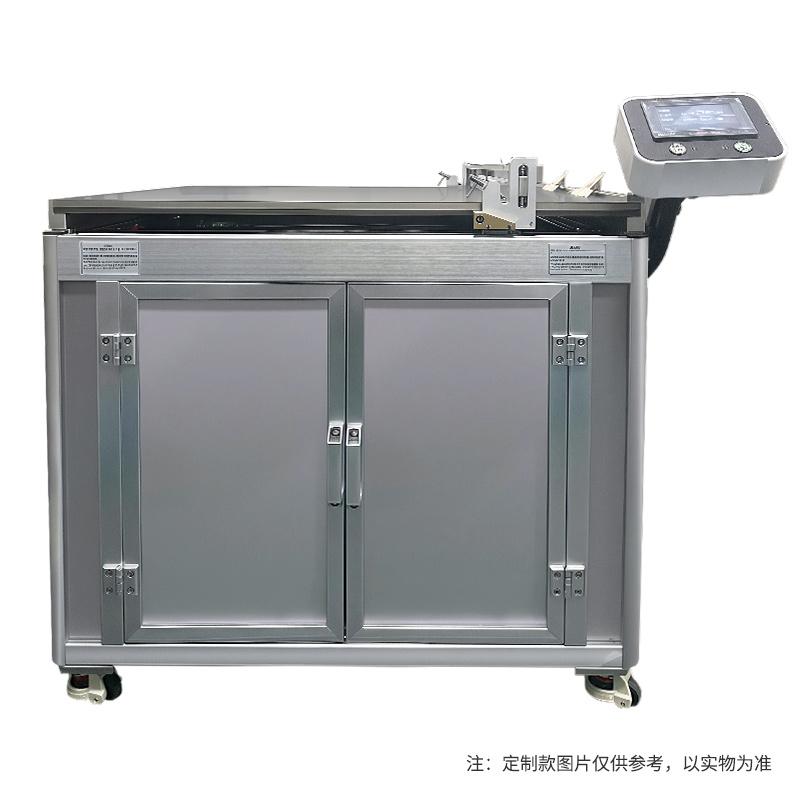

HuiNuo TM3000Pro/21D Automatic Film Applicator Floor bar drawdown blade Coater

Name: HuiNuo TM3000Pro/21D Automatic Film Applicator Floor bar drawdown blade Coater
Brand: HuiNuo
SKU: NB050280

Please contact customer service

With bar and drawdown blade double Spreader function, coating speed 1-300mm/s stepless speed regulation, clamshell drawdown blade design for easy cleaning, servo motor drive to ensure smooth operation, effective coating area of 1500 × 300mm.

Model

TM3000pro/21D

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050280

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, which is easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in the laboratory.

Features

1. Smoothness hard aluminum alloy baseplate, scratch resistance 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed

Principle

The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.

Applications

University research institutes, New materials, lithium batteries, glue, Resin and other laboratories for Moulding proofing

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Carbide aluminum baseplate (Glass plate optional)
Coating table Size
1740*330mm
Coating Size
1500*300mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
Bar accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
300mm
Blade Coating accuracy
±0.003mm
Drive motor
Servo motor
Power
400w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
100V~220V/50~60HZ
Dimension
1760 * 440 * 940Mm (subject to the actual product)
optional feature
Heating, Vacuum chuck

[Q] For coating samples of lithium battery slurry in our lab, which type of film applicator would be more suitable?

Recommend the TM3000pro/21D automatic film applicator. This machine features both wire rod and blade coating methods, with a coating speed that can be continuously adjusted from 1 to 300 mm per second. It is suitable for samples such as lithium battery slurries, which require precise control over coating thickness and uniformity. Its high-flatness, hard aluminum alloy base plate and original imported high-precision wire rods ensure that the film you coat achieves accurate and uniform thickness, meeting the high demands of lithium battery research and development for sample consistency.

[Q] We primarily research adhesives and resins, and often need to apply coatings on glass plates. High ease of cleaning is required. Any recommendations?

For coating experiments with adhesives and resins, with an emphasis on ease of cleaning, the Huinuo TM3000pro/21D is an excellent choice. It features an innovative flip-up blade coating head design, which allows for easy opening after coating to facilitate thorough cleaning, effectively preventing cross-contamination between different batches of samples. Additionally, its blade coating thickness range of 0.1 to 10 mm, combined with adjustable width, meets the film-forming requirements for adhesives and resins of varying viscosities, ensuring stable coating even on glass substrates.

[Q] We are looking to select a versatile and user-friendly film applicator for new material prototyping. How should we choose?

For the diverse prototyping needs in the field of new materials, it is recommended to choose the Huinuo TM3000pro/21D automatic film applicator with high functional integration. This single machine integrates two mainstream coating functions: wire rod and blade, covering a wide range of coating needs from thin to thick. In terms of operation, it is equipped with a color LCD touchscreen, making parameter settings intuitive and straightforward. Additionally, it supports optional heating and vacuum adsorption functions, enabling it to handle the film preparation conditions of more special materials. It can be considered a practical and efficient all-in-one sample preparation device for the laboratory.
