$ 9315.00Ex works
With bar and drawdown blade two coating methods, coating speed 1~ 300mm/s stepless speed regulation, Spreader thickness accuracy of +/- 0.001mm, clamshell drawdown blade for easy cleaning, integrated heating and Vacuum chuck function, improve film uniformity and operation convenience.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB050281
Service :The delivery and service By NBCLab.Com
Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With heating and Vacuum chuck function 8. Servo motor, more stable operation, higher film accuracy
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
1. Prepare the substrate and samples 2. Set Spreader parameters (application length, Spreader speed) 3. Start the device for automatic filming 4. Remove the sample after finishing the film
• Make sure the power supply of the device is connected correctly before use • Pay attention to safety during operation and avoid contact with moving parts • Spreader heads and countertops are cleaned regularly to maintain accuracy • The vacuum pump needs to be provided by the customer with compressed air, and the pressure is 0.6Mpa • Customized functions need to confirm parameter requirements in advance

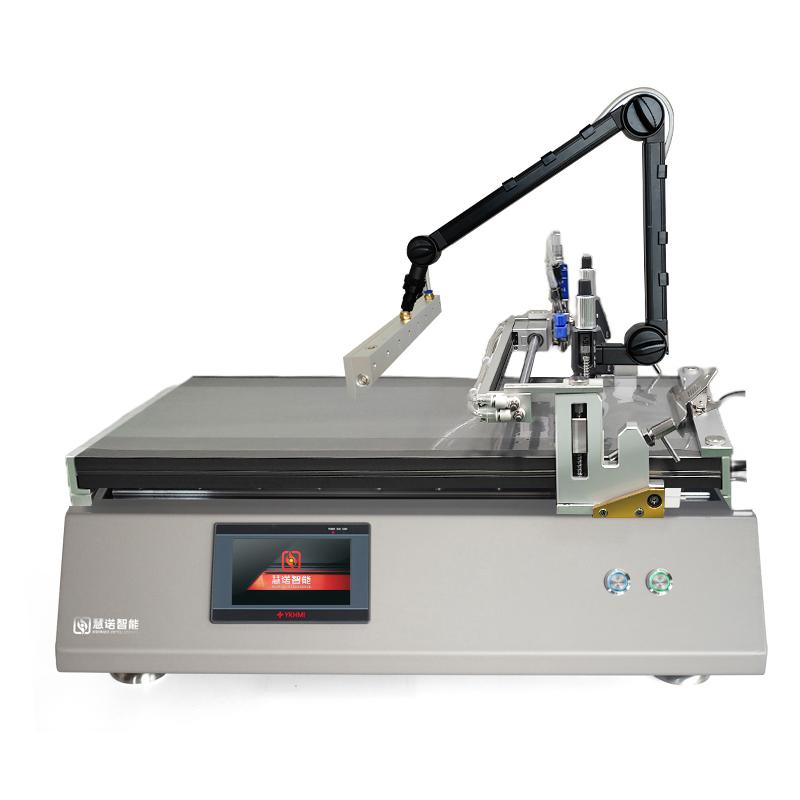

Recommend the TM3300proAFAK/01 multifunctional automatic film applicator. It utilizes servo motor drive and imported high-precision wire rods, achieving a film application accuracy of ±0.001mm, ensuring uniformity and high precision in coating lithium battery materials. Its vacuum adsorption and heating functions (temperature control ±1℃) also ensure substrate flatness and rapid drying of the coating, making it suitable for sample preparation of lithium battery materials.
The TM3300proAFAK/01 is suitable. It features both wire bar and blade coating methods, with a flip-top blade head design that makes cleaning easy, allowing for quick switching between adhesives or resin samples of different viscosities. The touchscreen operation is simple, and the coating speed and length can be freely adjusted, making it flexible to meet the coating needs of various fluid materials.
Yes, this TM3300proAFAK/01 model is equipped with an optional automatic feeding system. It utilizes pneumatic pressure feeding and reciprocating linear motion, allowing the material discharge volume to be precisely adjusted through air pressure and speed. This enables automatic and uniform material feeding during the coating process, making it suitable for preparing samples such as coatings, inks, and other materials that require high consistency in film coating effects.
