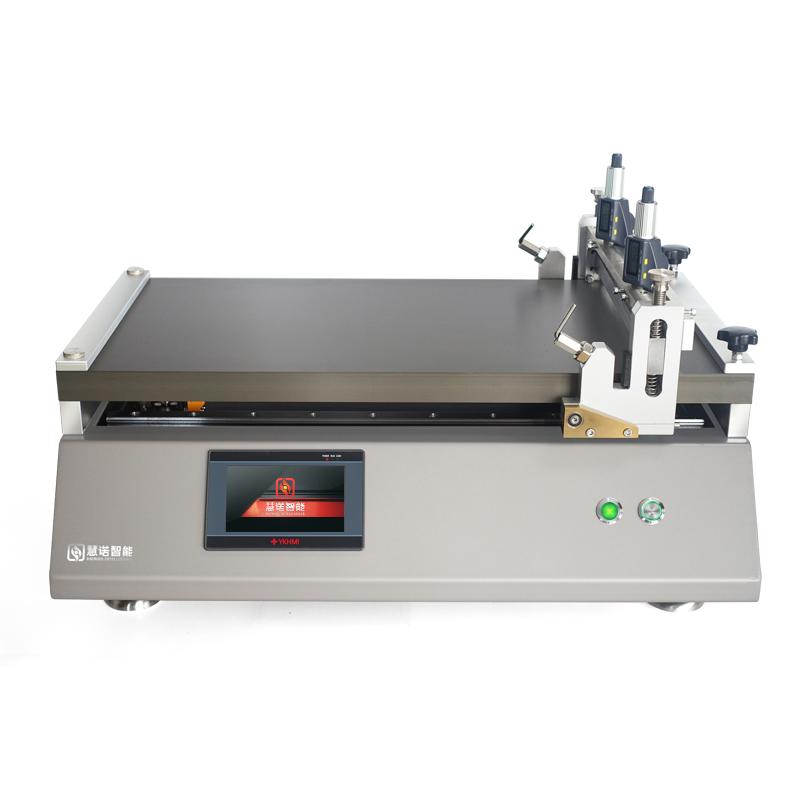

HuiNuo TM3100Pro/06 Automatic Film Applicator Servo motor bar drawdown blade Coater

Name: HuiNuo TM3100Pro/06 Automatic Film Applicator Servo motor bar drawdown blade Coater
Brand: HuiNuo
SKU: NB050454
Price: 4853.0 USD
Availability: PreOrder

$ 4853.00Ex works

Servo motor drive to ensure Spreader accuracy, coating speed 1~ 300mm/s stepless speed regulation, heating temperature up to 180 ℃, clamshell drawdown blade design for easy cleaning, suitable for a variety of material film needs.

Model

TM3100pro/06

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB050454

Service :The delivery and service By NBCLab.Com

Overview

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a servo motor High Accuracy bar drawdown blade Coater, using bar and drawdown blade two coating methods, with heating and drying function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, hot-melt adhesive, New material, lithium battery, glue, Resin and other laboratories.

Features

1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With heating function, suitable for hot-melt adhesive film

Principle

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.

Applications

Coatings, inks, paints, Stock, hot-melt adhesives, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples

Steps

1. Prepare the substrate and samples 2. Set Spreader parameters (application length, Spreader speed, temperature, etc.) 3. Select coating method (bar or drawdown blade) 4. Start the device to film 5. Clean the Spreader head after finishing the film

Notice

• Check equipment power supply and parameter settings before use • Make sure the substrate is firmly fixed • Clean the Spreader head in time after the Spreader is completed • Pay attention to temperature control when using the heating function • Regularly check the operating status of the equipment

coating method
Bar + drawdown blade
coating speed
1~ 300mm/s stepless speed regulation (can be customized)
Substrate clamping method
fixture
Coating table material
Surface hard treatment aluminum alloy
Coating table Size
740*430mm
Coating Size
500*400mm
meyer rod coating thickness Range
Different bar Sizes have different thicknesses, with High Accuracy imported bars
meyer rod coating accuracy
±0.001mm
Blade Coating Thickness Range
0.1~ 10Mm (clamshell design is easy to clean)
Drawdown blade material
Die steel
Blade Coating Width
400mm
Blade Coating accuracy
±0.003mm
Heating mode
Mica sheet heating (optional graphene heating, faster thermal conductivity)
Temperature Range
RT +~ 180 ℃ (can be customized)
Temperature Uniformity
±1℃
Drive motor
Servo motor
Power
2000w
Operating language
Chinese (can be customized in English)
display screen
Color LCD Touchscreen
Host power supply
220V/50HZ (can be customized 110V/60HZ)
Dimension
760*540*430mm

[Q] Our laboratory needs to prepare high-precision thin film samples, primarily for lithium battery material research. Are there any suitable automatic film coating machines you can recommend?

It is recommended to use the Huinuo TM3100pro/06 automatic film applicator. This device employs a servo motor drive and a dual coating method with a wire-wound bar, achieving a coating accuracy of ±0.001mm, making it suitable for research on materials such as lithium batteries, which require extremely high uniformity in film thickness. It features a heating function with uniform temperature control, effectively meeting the drying or specific temperature treatment needs after material coating.

[Q] We often need to test the coating performance of hot melt adhesives on different substrates, requiring quick sample preparation and easy equipment cleaning. Do you have any recommendations?

The Huinuo TM3100pro/06 is suitable. It is specifically designed for materials like hot melt adhesives, featuring a heating stage with a temperature range from RT+ to 180°C to maintain the fluidity of the adhesive. Its flip-top scraper head design allows for direct cleaning after coating by simply opening it, offering flexibility and convenience. This significantly improves your efficiency in sample replacement and continuous testing.

[Q] We are looking to purchase a coating machine that can handle both very thin coatings for optical films and thicker adhesive layers. How should we go about selecting the right model?

We recommend choosing the Huinuo TM3100pro/06. This single machine integrates both wire rod and blade coating methods. For thin-layer coating, it uses a high-precision imported wire rod, offering a wide and uniform thickness range. For thick-layer coating, its flip-top blade can adjust the thickness between 0.1-10 mm. With this one device, you can meet all your coating needs for various systems, from thin to thick, making it a highly versatile tool.
