Overview

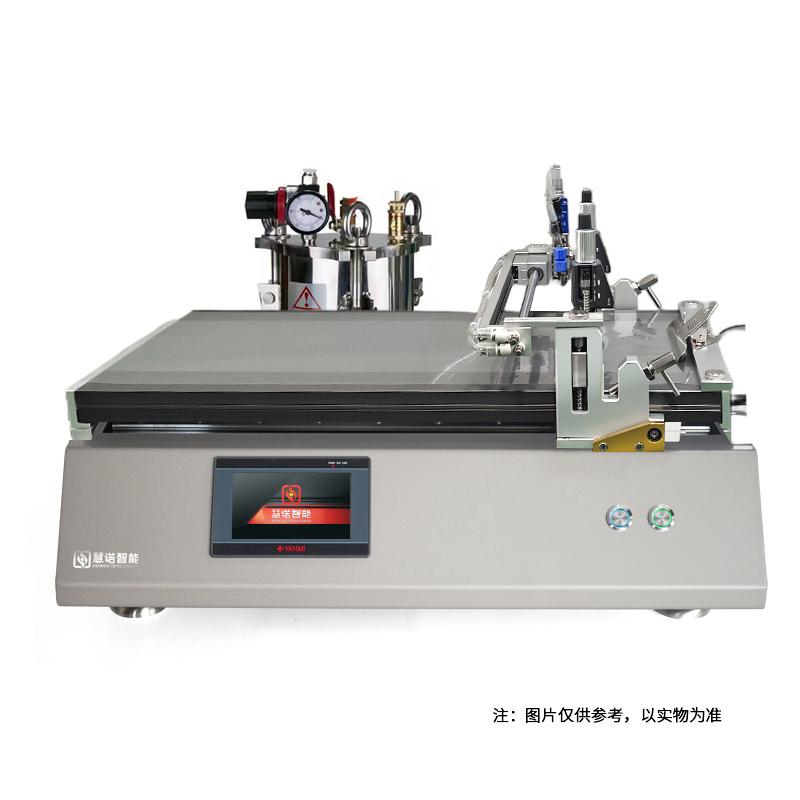

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. With heating and Vacuum chuck function
8. Servo motor, more stable operation, higher film accuracy
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy automatic film is realized by using bar Spreader and Blade Coating, driven by servo motor, combined with Vacuum chuck to fix the substrate.
Applications
Moulding proofing in research institutes of universities, New materials, lithium batteries, glues, Resin and other laboratories. Suitable for coating, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples, can be scraped on Glass, cardboard, cloth.
Steps
1. Prepare substrates (e.g. Glass, cardboard, fabric) and place them on the Spreader table
2. Vacuum chuck function fixed substrate
3. Choose the bar or Blade Coating method as needed
4. Set application length and Spreader speed parameters through Touchscreen
5. Start the device for automatic filming
6. After the Spreader is completed, turn off the device and clean it
Notice
• Make sure that the power supply of the equipment meets the requirements before use (100V~ 220V/50~ 60HZ)
• Vacuum pumps require customers to provide their own compressed air (0.6Mpa)
• Spreader Check Bench Smoothness and Spreader Head Cleanliness
• Pay attention to the heating Temperature range (RT +~ 180 ℃)
• Maintain equipment regularly to keep all components in normal working condition
