Overview
Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar drawdown blade Coater, with bar Spreader and Blade Coating two functions, the new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium, glue, Resin, etc.
Features
1. Smoothness hard aluminum alloy baseplate, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle

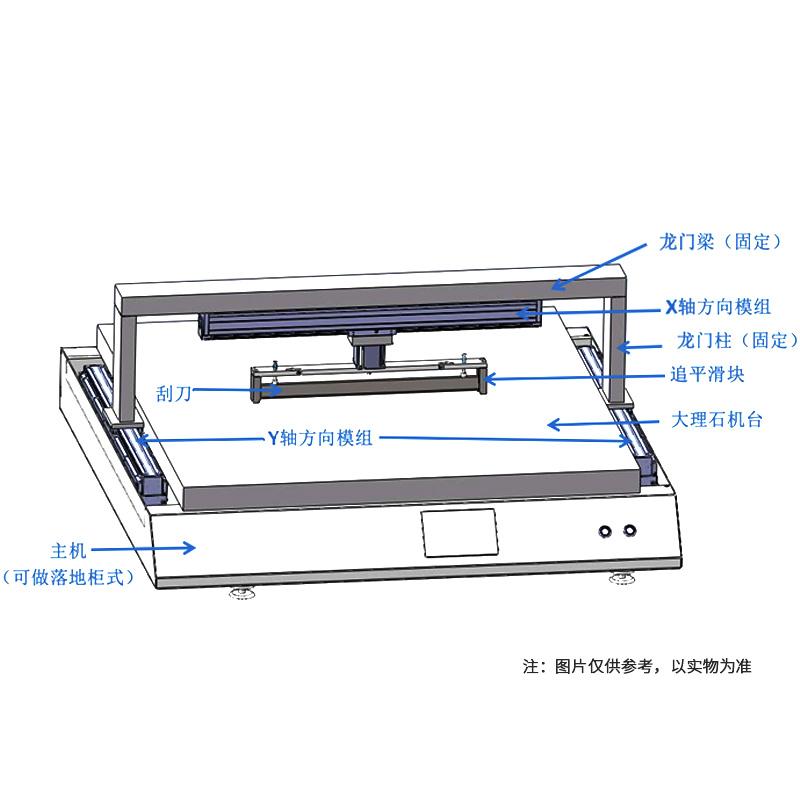

Automatic Film Applicator controls the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film. Its core features include an XY direction movable coating table, a 360 ° swirl/spin adjustable drawdown blade, and an XYR adjustable traverse speed and distance for High Accuracy film.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Set Spreader parameters through Touchscreen, including application length and Spreader speed
2. Place the sample and substrate on the film platform
3. Start the equipment for automatic film operation
4. After the film is completed, the drawdown blade can be clamped and cleaned
Notice
• Make sure the power supply is AC 220V 50Hz before use to avoid voltage mismatch
• The thickness of the film substrate should be within the range of 0-40mm
• The film thickness adjustment range is limited to 0-10mm
• Maximum film substrate area does not exceed φ 450mm
• Pay attention to safety during operation and avoid touching moving parts
• Regularly clean equipment to maintain film accuracy
