Overview
Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater with two functions: bar Spreader and Blade Coating. The innovative bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, which is easy to clean. It has speed control and application length adjustment functions. It is suitable for high Accuracy automatic film in the laboratory.
Features
1. Smoothness hard aluminum alloy baseplate, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle

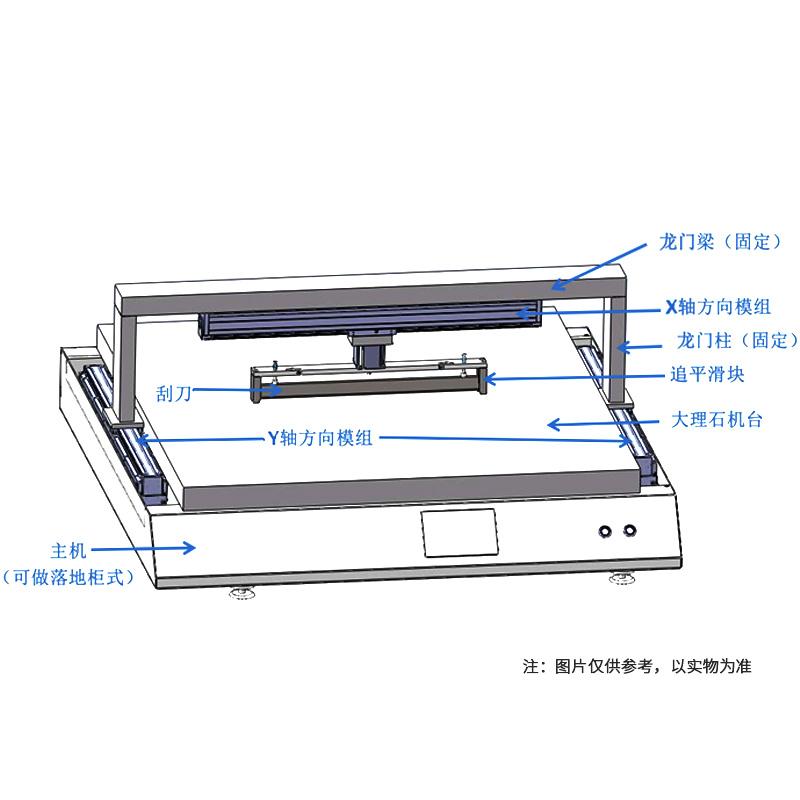

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Its core functions include a movable coating table in the XY direction, a 360 ° swirl/spin adjustable drawdown blade, and an adjustable traverse speed and distance for each axis of XYR.
Applications
Coatings, inks, paints, Stock, Lithium batteries, Pressure sensitive adhesives, Resin, Glue, Polymer materials, pharmaceuticals and other film samples, can be scraped on Glass, cardboard, fabric
Steps
1. Set Spreader parameters through Touchscreen, including application length and Spreader speed
2. Place the substrate on the marble film platform
3. Adjust drawdown blade height and angle
4. Start the device for automatic filming
5. After the Spreader is completed, the clamshell drawdown blade is easy to clean
Notice
• Make sure the host power supply is AC 220V 50Hz to avoid voltage mismatch
• Spreader check drawdown blade straightness and film thickness settings to ensure accuracy
• Pay attention to safety when cleaning drawdown blades to avoid scratches
• Follow the Touchscreen prompts during operation to prevent parameter setting errors
• Regularly maintain the motion system and Control system to keep the equipment running stably
