$ 10431.00Ex works
With bar and drawdown blade double coating method, Spreader accuracy of +/- 0.001mm and +/- 0.003mm respectively, support 1~ 300mm/s stepless speed regulation, clamshell design for easy cleaning, Vacuum chuck for soft substrate.
Category : Automatic Film Applicator
Brand : HuiNuo
SKU : NB050590
Service :The delivery and service By NBCLab.Com

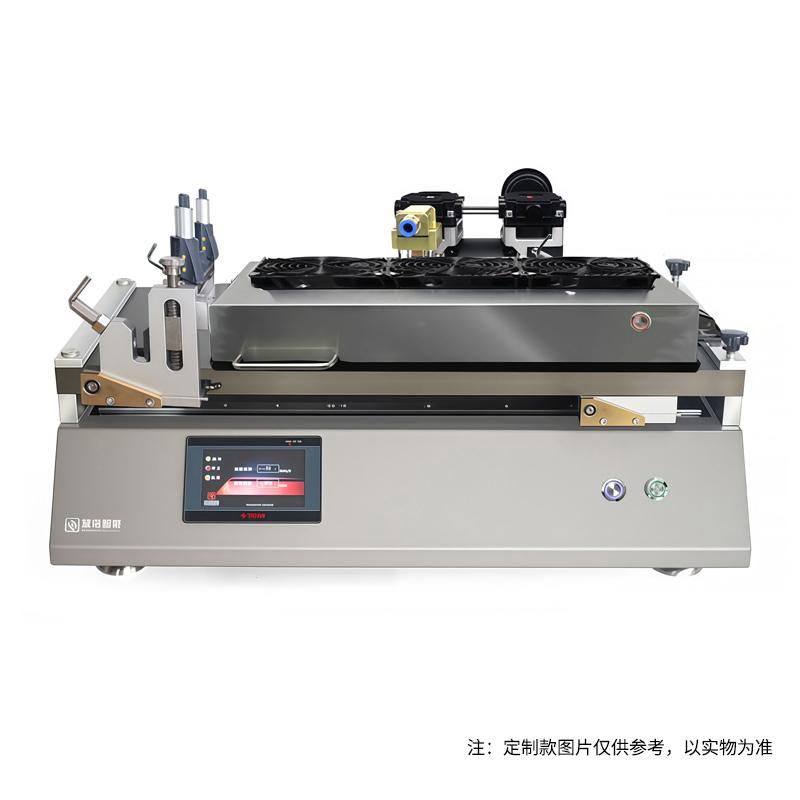

Automatic Film Applicator is a device for intermediate coating film in the laboratory, replacing manual film and automatically filming to improve the accuracy and efficiency of film. This Film Applicator is a bar drawdown blade Coater, using bar and drawdown blade two coating methods, with Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, hot-melt adhesive and other laboratories.
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument 2. Big brand differential regulator, high film thickness control accuracy 3. Clamped Blade Coating Head for Easy Cleaning 4. Equipped with High Accuracy Film Applicator, the original imported bar film has high uniform accuracy 5. Touchscreen control panel, easy to operate 6. Free adjustment of application length and Spreader speed 7. With Vacuum chuck function, suitable for thin film and other soft substrate Spreader
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Coating, inks, paints, Stock, hot-melt adhesive, lithium battery, Pressure sensitive adhesive, Resin, glue, polymer materials and other film samples, can be scraped on film, cardboard, aluminum foil copper foil
1. Prepare samples and substrates 2. Set Spreader parameters (such as application length, Spreader speed) 3. Fixed substrate (using Vacuum chuck or fixture) 4. Select coating method (bar or drawdown blade) 5. Start the device to film 6. Clean the Spreader head after finishing the Spreader
• Ensure that the power supply of the equipment meets the requirements before operation (100V~ 220V/50~ 60HZ) • Pay attention to temperature control during Spreader to avoid burns • Regularly clean Spreader head and countertop to maintain equipment accuracy • When using Vacuum chuck, make sure the substrate is flat and wrinkle-free • Select the appropriate Spreader thickness and speed according to material characteristics
Recommend the Huinuo TM3300pro/40 Automatic Coating Machine. It employs both wire bar and blade coating methods, with wire bar coating precision reaching up to ±0.001mm, ensuring uniformity and high precision in lithium battery slurry coating. The machine features a vacuum adsorption function, which securely holds soft substrates such as aluminum foil and copper foil, making it suitable for sample preparation needs in lithium battery laboratories.
For adhesive and hot melt adhesive coating applications, the Huinuo TM3300pro/40 is recommended. Its blade coating thickness range is 0.1–10 mm, and it features both base plate and top heating functions, with a temperature control range from room temperature to 180°C and a temperature uniformity of ±1°C. This effectively meets the process requirements for thickness control and heating/melting during the coating of materials such as hot melt adhesives.
The Huinuo TM3300pro/40 is suitable. It features a flip-type blade coating head and an innovative wire bar installation method, making cleaning convenient. At the same time, the color touchscreen control panel allows for simple and intuitive operation. Both the coating length and speed can be freely adjusted, enabling efficient and high-precision proofing of coatings, inks, and other samples on cardboard and film.
