Overview

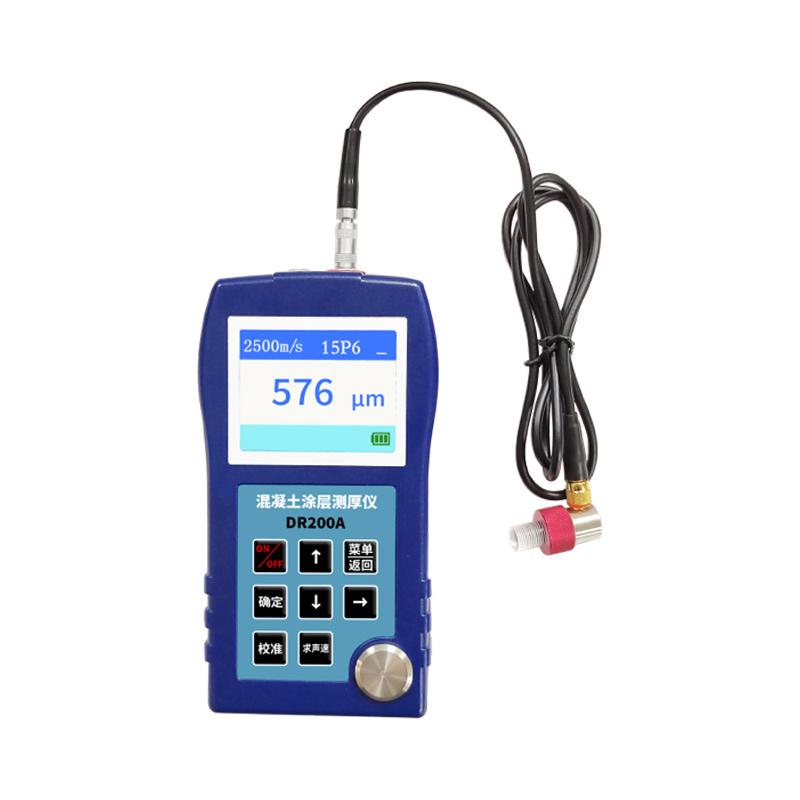

DR200A concrete Coating thickness gauge is an ultrasonic Coating thickness gauge, using nondestructive ultrasonic Measurement principle, equipped with high-speed processor, High Accuracy Measurement chip and high-frequency precision single crystal Probe design, to achieve Portable, nondestructive, fast and accurate measurement of concrete (cement) surface paints Coating thickness and floor paint thickness.
Features
1. High frequency single crystal Probe, stable and reliable measurement
2. High Accuracy Timing Chip with Automatic Real-Time Adjustment for Accurate measurement
3. Support delamination measurement and total thickness measurement
4. Equipped with 2.3-inch color screen, Display resolution is high
5. Handheld design, easy to carry, suitable for on-site testing
6. Automatic adjustment of signal gain to achieve automatic identification of thick and thin materials
7. Support Chinese and English bilingual versions
8. Provide manual shutdown and automatic shutdown modes, users can choose at will
9. Built-in Speed of sound of a variety of commonly used materials, and can be edited for user convenience
10. Support Speed of sound calibrating and Speed of sound function
11. Humanized data storage mode: large-capacity storage, can save data in groups, store 10 sets of data, 200 in each group, a total of 2000 data
12. Large-capacity storage, easy and simple to view and delete operations
Principle
The thickness gauge uses the nondestructive ultrasonic Measurement principle, transmits and receives ultrasonic signals through high-frequency precision single crystal Probe, combines high-speed processor and High Accuracy Measurement chip, automatically adjusts signal gain, realizes automatic identification of thick and thin materials and accurate thickness measurement.
Applications
Concrete (cement) surface coating, floor paint thickness measurement
