Overview

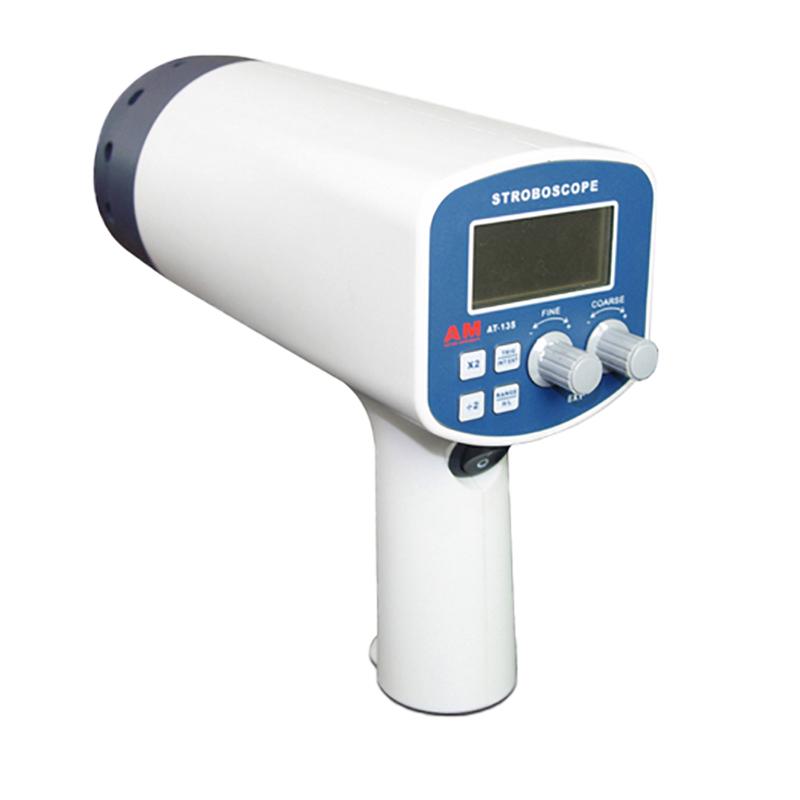

AMITTARI Stroboscopic Rotation speed instrument model AT-135A is an instrument for measurement of object Rotation speed and Motion Frequency, which can be applied to detect motor Rotation speed, printing bag Motion Frequency, and can be used to analyze object vibration, high-speed moving object action and high-speed photography.
Features
1. Digital display, ignoring the difference; Measurement range is wide and resolution is high.
2. Automatic stop flashing function saves electricity while improving the service life of the strobe lamp.
3. Internal trigger/external trigger selection fast conversion; double frequency, half frequency fast frequency modulation function.
4. When the external trigger mode is used (using photoelectric signals), the automatic tracking function of the pattern can be realized.
5. Using a number of professional technologies such as microcomputer technology, flashing technology and anti-interference technology, the Rotation speed value can be accurately measured without contact.
Principle
Rotation speed meter generates flashing frequency to illuminate the measured object. When the flashing Frequency is synchronized with the object motion Frequency, the object presents a static state, so that the Rotation speed value can be accurately measured without contact. Automatic pattern tracking and Frequency adjustment are realized by using internal or external triggering methods combined with photoelectric signals.
Applications
Rotation speed measurement, Frequency detection of printing bag motion, object vibration analysis, high-speed moving object motion analysis, high-speed photography
Steps
1. Select the internal trigger or external trigger working mode according to the measurement requirements.
2. Set the Strobe Frequency, you can use the double frequency or half frequency fast frequency modulation function.
3. Align the measured object for measurement and observe the digital display result.
4. Use the automatic stop flash function to save electricity.
5. In the external trigger mode, the photoelectric signal is used to achieve automatic pattern tracking.
Notice
* Please use in an environment without corrosion gas and strong electromagnetic field.
* Ambient Temperature should be kept in the range of 0 ℃ -40 ℃.
* The relative humidity should be less than 85% RH.
* Power supply voltage meets specifications (220 +/- 10% V AC or 110 +/- 10% V).
* Note that the service life of the strobe lamp is 100 million times.
