Overview

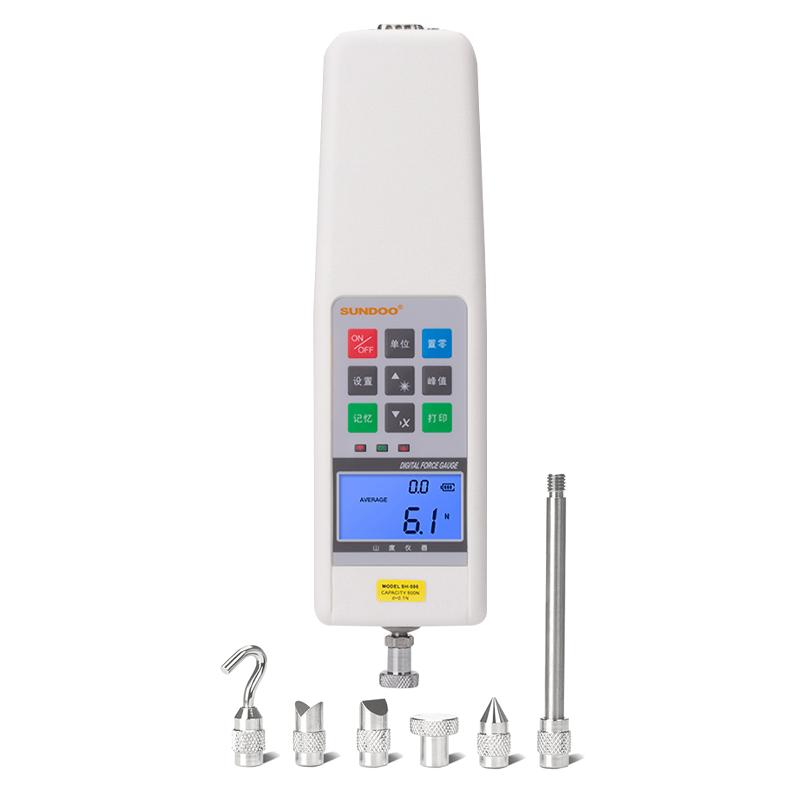

SHB-2 Force Gauge is a digital display Force Gauge produced by SUNDOO, which is a small and simple thrust and tension test instrument. With High Accuracy and High Resolution, it is suitable for push-pull load test, plug-in force test and failure test of various products, and can be combined with machine and fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
The SHB-2 Force Gauge detects the push-pull load through the built-in Sensor, converts the mechanical signal into an electrical signal, and displays the Measured value on the digital display after processing. Supports a variety of data processing functions, including peak hold, unit conversion, and Data storage.
Applications
Push-pull load testing, insertion force testing, and failure testing of various products
Steps
1. Read the instructions carefully before use
2. Connect the power supply or ensure that the battery is fully charged
3. Set the upper and lower limit deviation values, units, backlights and other parameters as needed
4. Conduct push-pull load testing
5. View display data or connect external devices for data output
Notice
• Please read the instructions carefully before use
• Operating temperature: 20 ℃ +/- 10 ℃
• relative humidity: 35% RH~ 65% RH
• There should be no vibration source and no corrosion medium around
• Battery life is about 3 months, Charging time is about 40 hours
• Standby time ≥ 300 times
