Overview

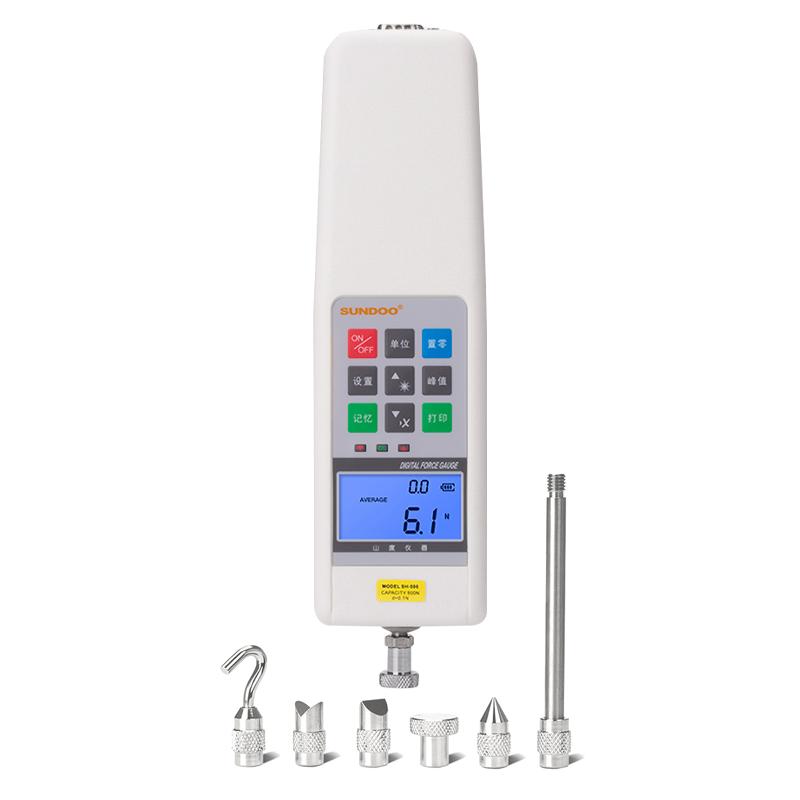

SHB-10 tension and compression Force Gauge is a small and simple thrust and tension testing instrument produced by SUNDOO, with the characteristics of High Accuracy and high resolution. The digital display Force Gauge is small in size, light in weight, and easy to carry. It is suitable for push-pull load testing, plug-in force testing and failure testing of various products. It can be combined with a machine and a fixture to form a small testing machine.
Features
1. High Accuracy and high resolution
2. Free setting and judgment of upper and lower deviation values, red and green indicator lights and buzzer automatic sound and light alarm settings
3. Test direction display
4. Blue backlight can be switched on and off
5. It can store 10 sets of test data and automatically calculate the average value of the stored data
6. Three units N, kgf, lbf are automatically converted
7. The data on the LCD screen can be flipped and displayed
8. With peak hold function, peak automatic release function and free release time setting
9. Power-saving design for automatic shutdown without operation, free shutdown time setting
10. Serial port (Mini RS-232C) output, connected to the computer can realize the Linear dispersion test function, connected to the printer can print 10 sets of stored test data and MAX Maximum, MIN Minimum, average value, qualified or unqualified value judgment, connect the dedicated machine to achieve When the predetermined stop value is reached, the machine stops moving
Principle
SHB-10 Tensile Force Gauge detects thrust or tensile load through built-in Sensor, converts physical signal into electrical signal, and displays measurement result on digital display screen after processing. The instrument has Data storage, unit conversion and alarm functions, and can be connected to computer, printer and special machine through serial output.
Applications
Product push-pull load test, insertion force test, failure test
Steps
1. Read the instructions carefully before use
2. Set the upper and lower limit deviation values as needed
3. Select the test direction and unit
4. Conduct a thrust or pull test
5. View and store test data
6. External devices can be connected via serial port for data output and analysis
Notice
• Please read the instructions carefully before use
• Operating temperature should be kept within the range of 20 ° C +/- 10 ° C
• The relative humidity should be controlled between 35% RH and 65% RH
• Should be used in environments without vibration sources and corrosion-free media
• Note that the battery Charging time is about 4 hours, and the use time is about 40 hours
• Charge in time when not in use for a long time to avoid excessive discharge of the battery
